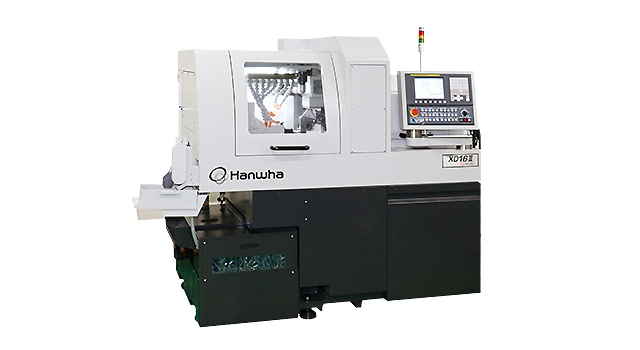

New HANWHA XD16III | Swiss Type Automatic Screw Machines
Have one to sell?
ConditionNew
New
Optimized for high precision machining and high productivity.
· Optimized machining with stable structure and high-speed for short cycle
· High efficiency of performance with wide space and various options
· Optimal mold casting and rib structure through finite element analysis
NC Hanwha Fanuc-i
Machining diameter Max. Ø16mm
Z1 Stroke 155mm
Main spindle (Speed) 15,000rpm
Main spindle (Motor) 2.2/3.7kW
Optimized for high precision machining and high productivity.
· Optimized machining with stable structure and high-speed for short cycle
· High efficiency of performance with wide space and various options
· Optimal mold casting and rib structure through finite element analysis
Imperial
| Spindle Hole Dia | 16 mm |
| Power | 2.2 kW |
| RPM | 15,000 RPM |
| # Axis | 5 |
NC Hanwha Fanuc-i
Machining diameter Max. Ø16mm
Z1 Stroke 155mm
Main spindle (Speed) 15,000rpm
Main spindle (Motor) 2.2/3.7kW
