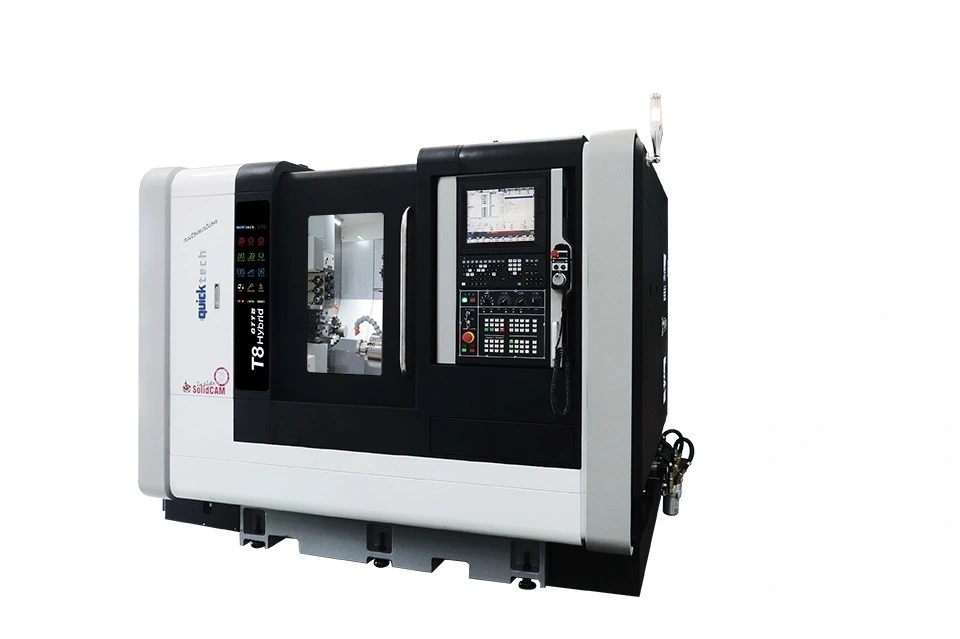

T8 TWIN Y (6-AXIS)

Item / Model T8 Twin Y

Main Spindle Capacity
Swing over Bed
Swing over Cross Slide 11.8″
Max Bar Working Capacity 2.56″ (65mm)
Max Turning Length 13.8″
Spindle Speed Range 4,000 RPM
Spindle Motor 20 HP Integral Motor
C-Axis Increment .001°
Sub-Spindle Capacity
Max Bar Working Capacity 1.65″ (42mm)
Max Turning Length 13.2″
Spindle Speed Range 4,000 RPM
Spindle Motor 7.5 HP Integral Motor
C-Axis Increment .001°
Travel and Feed
Rapid Traverse Rate 1,181″/min.
Tooling System (Main)
Tooling Type BMT-55 Servo Turret
Number of Tools 12
Number of Live Tool Stations 12
Square Shank Size 1″ (25mm)
Boring Bar Capacity 1.25″ (25mm)
Turret Index Time .3 Seconds / Station
.5 Seconds 180°
Live Tool Spindle Motor 5 HP
Live Tool Spindle Speed 4,000 RPM
Tooling System (Sub)
Tooling Type
Number of Turning Tools
Square Shank Size
Boring Bar Capacity
B-Axis
B-Axis Index Time
Number of Live Tools
Live Tool Spindle Motor
Live Tool Spindle Speed
Live Tool Shank
Tailstock
Body Travel (manual)
Quill Travel (programmable hydraulic)
Quill Diameter
Quill Taper
General
CNC Control Mitsubishi M80A
Machine Dimensions with Chip Conveyor 132″ x 65″ x 69″
Machine Weight 12,540 lbs.
