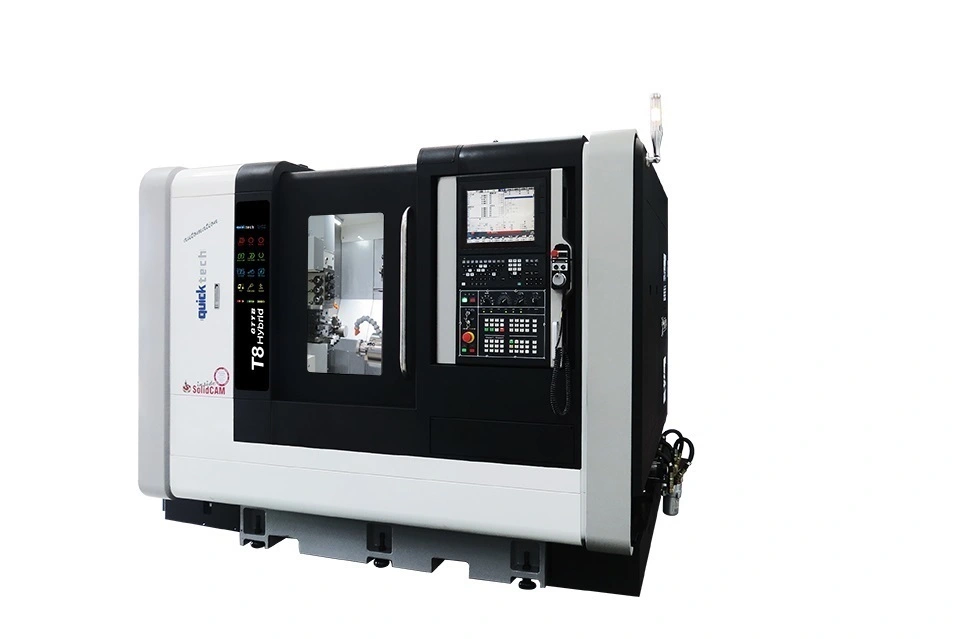

T8 MILL (3-AXIS)
Have one to sell?
ConditionNew
New
Item / Model T8 MILL
Main Spindle Capacity
Swing over Bed 19.7″
Swing over Cross Slide 11.8″
Max Bar Working Capacity 2.56″ (65mm)
Max Turning Length 13.8″
Spindle Speed Range 4,000 RPM
Spindle Motor 20 HP Integral Motor
C-Axis Increment .001°
Sub-Spindle Capacity
Max Bar Working Capacity
Max Turning Length
Spindle Speed Range
Spindle Motor
C-Axis Increment
Travel and Feed
Rapid Traverse Rate 1,181″/min.
Tooling System (Main)
Tooling Type BMT-55 Servo Turret
Number of Tools 12
Number of Live Tool Stations 12
Square Shank Size 1″ (25mm)
Boring Bar Capacity 1.25″ (25mm)
Turret Index Time .3 Seconds / Station
.5 Seconds 180°
Live Tool Spindle Motor 5 HP
Live Tool Spindle Speed 4,000 RPM
Tooling System (Sub)
Tooling Type
Number of Turning Tools
Square Shank Size
Boring Bar Capacity
B-Axis
B-Axis Index Time
Number of Live Tools
Live Tool Spindle Motor
Live Tool Spindle Speed
Live Tool Shank
Tailstock
Body Travel (manual) 15.7″
Quill Travel (programmable hydraulic) 3.15″
Quill Diameter 2.95″
Quill Taper MT#4
General
CNC Control Mitsubishi M80A
Machine Dimensions with Chip Conveyor 128″ x 65″ x 69″
Machine Weight 12,500 lbs.
1 Set of BMT-55 turret static tool holders
(12) live tools for B axis(ER-20 collets)
(1) 60mm collet chuck for main spindle and (1) 42mm collet chuck for sub spindle)
(5) Rear O.D. tool change KM-25 tool holder bases
(4) Rear I.D. tool holders (ER-20 collets)
ER-20 collet set (box)
Parts catcher
Parts conveyor
Chip conveyor
Bar feeder interface
400 PSI / 8GPM high pressure coolant pump
75 PSI / 20 GPM floor coolant pump
Full enclosed machine guards
Auto lubrication system
1 Set of machine and control manuals
