T6 COMPACT (2-AXIS)
Have one to sell?
ConditionNew
New

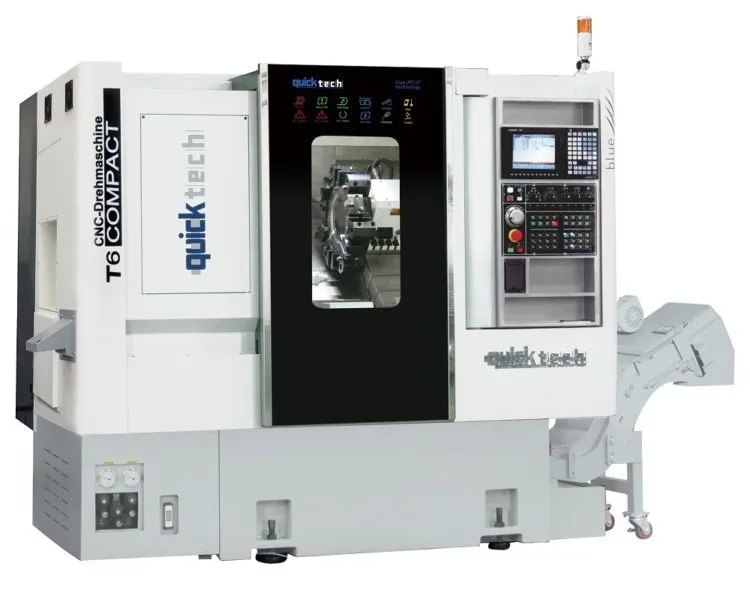

The QuickTECH T6 COMPACT and T6 MILL combine a powerful 15HP 1.65” bar capacity main spindle with a tailstock for economical turning or turn / mill applications. This, high production CNC turning center is cast from Meehanite iron. With a 42mm bar capacity, this unique turning center provides fast and accurate turning functions with optional milling functions.
The main spindle sports a 15HP high torque spindle motor as well a 1.65” (42mm) bar capacity. The T6 MILL features a full continuous C axis with braking system. The main spindle is standard with a 6” 3 jaw hydraulic chuck. The spindle employs P4 high precision bearings for stability and heavy cutting ability.
The machine features a rigid 12 station BMT-55 servo turret (BMT-55 live turret with 5HP spindle motor for T6 MILL). Both turrets features fast servo motor index and rigid hydraulic clamping. On the T6 MILL with BMT turret, all 12 stations can be live. Rigid tapping is standard in the BMT live turret.
Item / Model T6 COMPACT
Main Spindle Capacity
Swing over Bed 15.7″
Swing over Cross Slide 9.05″
Max Bar Working Capacity 1.65″ (42mm)
Max Turning Length 11.8″
Spindle Speed Range 6,000 RPM
Spindle Motor 15 HP
C-Axis Increment
Sub-Spindle Capacity
Chuck Type
Max Bar Working Capacity
Spindle Nose
Spindle Speed Range
Spindle Motor
C-Axis Increment
Travel and Feed
Rapid Traverse Rate 1,181″/min.
Tooling System (Main)
Tooling Type BMT-55 Servo Turret
Number of Tools 12
Number of Live Tool Stations
Square Shank Size 1″ (25mm)
Boring Bar Capacity 1.25″ (25mm)
Turret Index Time .3 Seconds / Station
.5 Seconds 180°
Live Tool Spindle Motor
Live Tool Spindle Speed
Tooling System (Sub)
Tooling Type
Number of Turning Tools
Square Shank Size
Boring Bar Capacity
B-Axis
B-Axis Index Time
Number of Live Tools
Live Tool Spindle Motor
Live Tool Spindle Speed
Live Tool Shank
Tailstock
Body Travel (manual) 15.7″
Quill Travel (programmable hydraulic) 3.15″
Quill Diameter 2.95″
Quill Taper MT#4
General
CNC Control Mitsubishi M80A
Machine Dimensions with Chip Conveyor 126″ x 52″ x 73″
Machine Weight 9,900 lbs.
