LNT-36S 12-AXIS MULTI-SLIDE CNC SCREW MACHINES
Have one to sell?
ConditionNew
New

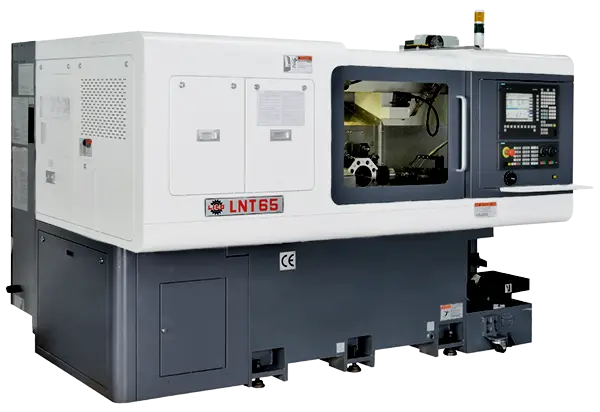

The LICO LNTS Series multi-slide CNC screw machines are ruggedly built and capable of form tool use with each slide having a full 2-axis servo-controlled travel. The LNTS, with 3 or 4 multi-axis slides and an 8-position turret, can overlap up to 5 tools at once.
For medium to complex parts, it can match the speed of cam machines; however the benefits do not end there. A turret-mounted pickoff counter-spindle is standard and the base machine comes with a gang platform supporting 3 backworking tools. The LNTS series offers an optional, 8-position static backworking turret.
Each main turret position accepts VDI-30 live tooling with four live tool holders being standard. With spindle sizes ranging from 36mm (1.4”) to 65mm (2.55”), these machines cover a wide range of applications.
The LNTS comes standard with a 1,000 PSI high pressure oil/water coolant pump.
Item / Model LNT36S
Request a Quote
Capacities
Bar Capacity ∅ Thru Bore 36 mm (1.42″)
Max Turning Length 130 mm (5.12″)
Spindle
Spindle Center Height (approx.) 1,000 mm (40″)
Collet Chuck Type F42 (36 mm)
Motor Power (Continuous) 15 kW (20 HP)
Max. Spindle Speed 6,000 RPM
Cross Slide
X-Axis Travel (standard) 70 mm (2.76″)
X-Axis Travel (ext. opt.) 110 mm (4.33″)
Z-Axis Travel 115 mm (4.53″)
Rapid Traverse 15 meters/min. (590″/min.)
Max. Feed Rate 5 meters/min. (197″/min.)
Resolution 0.001 mm (0.0001″)
Turret Slide
Tool Positions 8
Tool Shank Type VDI-30 x 55
X-Axis Travel 160 mm (6.3″)
Z-Axis Travel 500 mm (19.7″)
Turning Tool Section 20 mm sq. (3.4″ sq.)
Indexing Time 0.28 sec. / 180° – 0.6 sec.
Subspindle (standard)
Collet Chuck Type TNS42
Power 5 HP
Max. Speed 3,000 RPM
Machine
Dimensions (LxWxH) 2804 x 1848 x 1935 mm (110″ x 72″ x 76″)
Weight 3,200 kg (7,040 lbs)
Hydraulic Tank Capacity 30 L (8 gallons)
Hydraulic Pump Motor 1 kW (1.3 HP)
Coolant Tank Capacity 200 L (53 gallons)
Flood Coolant Motor 0.75 kW (1 HP)
High Pressure Coolant Motor 2.2 kW (3 HP)
High Pressure Coolant Flow 18 L/min. @ 70 kg/cm2 (5 gal/min. @ 1,000 PSI)
Lubrication Capacity 2 L / 10 sec. (10 cc / 10 sec.)
Total Power Used* 25 kVA
8-position, 2-axis VDI-30 live tool turret (3000 rpm)
Three, 2-axis cross slides (dove tail & gib design)
Pick-off device / sub-spindle on live turret (3000 rpm)
Main Spindle-collet system
48-position spindle dividing system
1000 psi high pressure oil/water coolant pump
Part conveyor and part catcher
Chip conveyor with chip cart
Automatic lubrication system
Gang tool platform for back machining
Set of tool holders for cross slides, VDI-30 turrets, and rear gang platform (includes 2 live radial & axial tools)
Tool box with custom hand tools and spare parts
Control cabinet air conditioner
Safety interlocked sliding front door
