12-AXIS TWIN SPINDLE MULTI-SLIDE CNC MILL/TURN CENTERS
Have one to sell?
ConditionNew
New

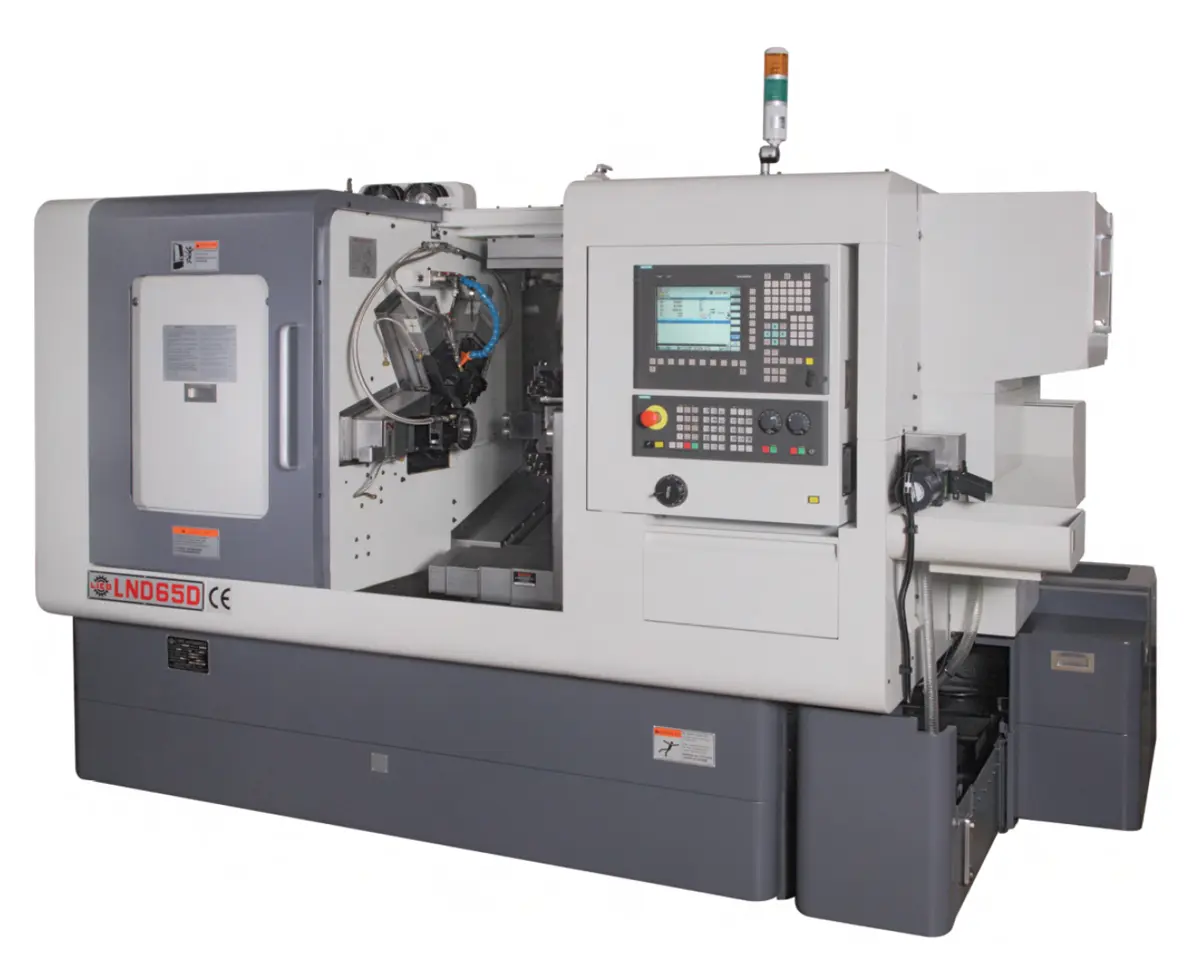

The LICO LNDD series are extremely productive twin spindle multi-slide mill/turn centers. LNDD machines feature overlapping slides for maximized productivity and excellent size control. These machines are offered in 4 spindle sizes: 51mm, 65mm, 80mm, and 100mm.
The base machines are delivered with three (3) 2-axis cross-slides around the main spindle, an 8-position 3-axis VDI-30 turret that is double-tooled for working both main and counter spindles, and a full-tilt independent counter-spindle. Outfitted with live tooling on the turret (up to 16 live tools) this machine changes from turning center to a machine that can handle cross drilling, tapping, slotting, and basic milling.
With the Y-axis on the live turret you have a double spindle turning and milling machine (both C-axis capable) with the capability of overlapping five (5) tools at once (3 cross slides and 2 turrets). The live turret uses VDI-30 holders and can use live tooling in any position.
The LNDD comes standard with a 1,000 PSI high pressure oil/water coolant pump and weighs in at 10,000 lbs.
Item / Model LND100D
Request a Quote
Bar Capacity ∅ Thru Bore 100 mm (3.94″)
Max Turning Length 450 mm (17.7″)
Main Spindle
Collet Chuck Type F112
Spindle Nose A2-8
Motor Power (Continuous) 15 kW (20 HP)
Max. Spindle Speed 2,500 RPM
Counter Spindle
Collet Chuck Type
Spindle Nose A2-5
Motor Power (Continuous/Peak)
Max. Spindle Speed 5,000 RPM
Z-Axis Slide Travel 450 mm (17.7″)
Slide Motor Power 2.3 kW (3.0 HP)
Cross Slide
X-Axis Travel (standard) 70 mm (2.76″)
X-Axis Travel (extended opt.) 110 mm (4.33″)
Z-Axis Travel 115 mm (4.53″)
Motor Power 0.5 kW (0.7 HP)
Rapid Traverse 15 meters/min. (590″/min.)
Max. Feed Rate 5 meters/min. (197″/min.)
Turret Slide
Tool Positions 8
Tool Shank Type
Indexing Time
Live Motor Tool Power 5 HP
Live Tool Max. Speed 3,000 RPM
X-Axis Travel 175 mm (6.9″)
Z-Axis Travel 475 mm (18.7″)
X/Z Axis Motor Power 2.3 kW (3.0 HP)
Y-Axis Travel (opt.) ±55 mm (±2.16″)
Y-Axis Motor Power 1.5 kW (2.0 HP)
Machine
Dimensions (LxWxH)
Weight 4,700 kg (10,350 lbs.)
Hydraulic Tank Capacity 30 L (8 gallons)
Hydraulic Pump Motor 1.5 kW (2.0 HP)
Coolant Tank Capacity 200 L (53 gallons)
Flood Coolant Motor 1.27 kW (1.7 HP)
High Pressure Coolant Motor 2.2 kW (3 HP)
High Pressure Coolant Flow
Lubrication Capacity
Total Power Used 38 kVA
8-position, 2-axis VDI-30 turret, double tooled for work on main and counter spindle
Two, 2-axis cross slides (dove tail & gib design)
Counter spindle (Z-axis control, 5000 rpm)
Main Spindle collet system
48-position spindle dividing system
1000 psi high pressure oil/water coolant pump
Automatic lubrication system
Lower parts catcher & conveyor (gravity drop)
Parts ejector & air blow in counter spindle
Chip conveyor with chip cart
Set of tool holders for cross slides and VDI-30 turrets
Tool box with custom hand tools and spare parts
Control cabinet air conditioner
Safety interlocked sliding front door
