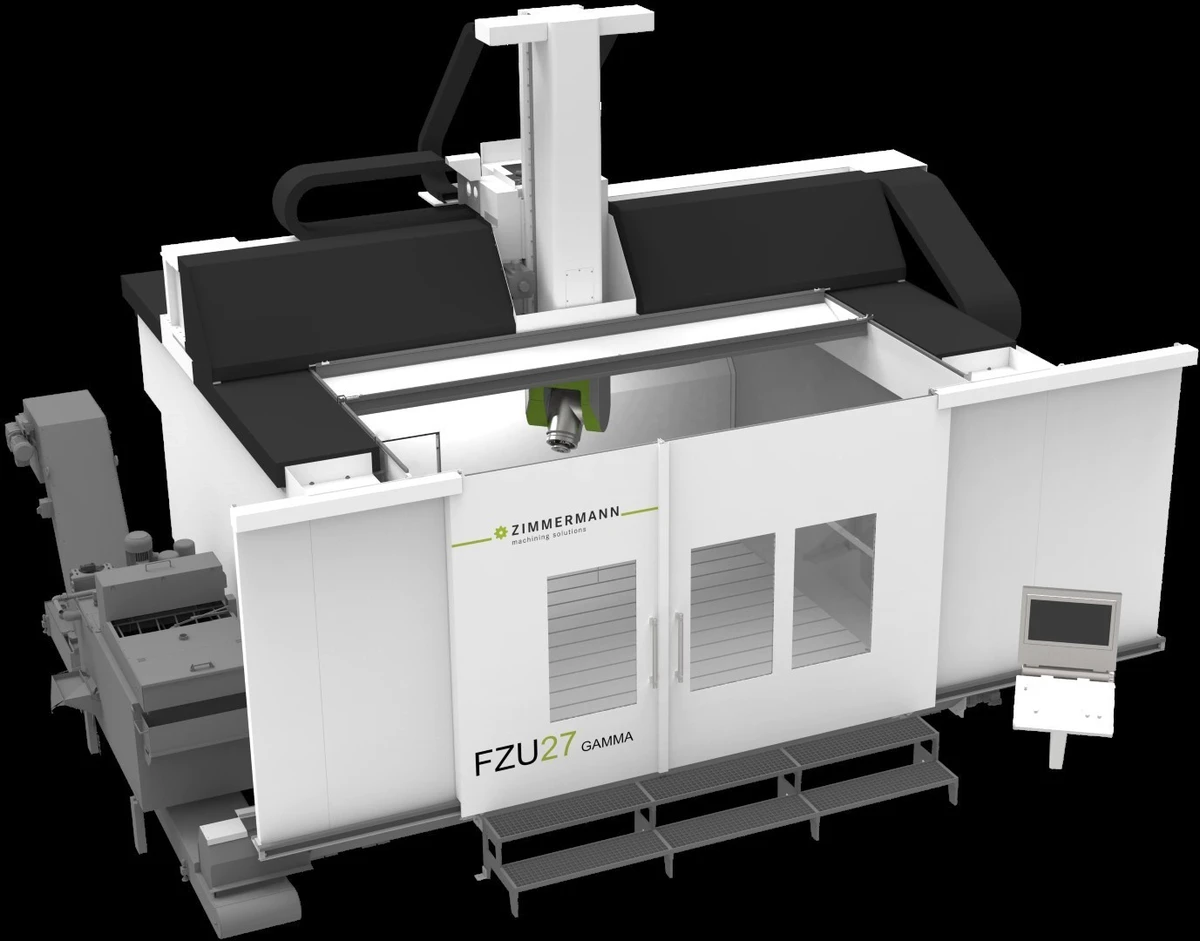

Robust. Dynamic. Accurate.
Model and mold making places its own unique demands on a machining center; this series meets them in full – even for large-volume components made of aluminum, ureol or even for light HSC steel machining. Here, too, proven components can be adapted to individual tasks in a modular system. The machine is equipped with a sophisticated chip management system that features excellent chip disposal with self-cleaning chip deflectors and insensitive, high-quality chip conveyors.
Working Ranges
X-Axis
2 000/2 500/4 000 mm (79"/98"/157")
Y-Axis
2 500/3 500 mm (98"-138")
Z-Axis
1 250/1 500/1 750 mm (49"/59"/69")
Table size
Height
90 mm (3,5")
Table load
2000 kg/m² (max. 10 t)
T-Slots (longitudinal)
18H12
Pitch of T-Slots
200 mm (8")
Drives Linear Axes
Feed rate X-, Y-Axis
up to 60 m/min (2362 ipm)
Feed rate Z-Axis
up to 40 m/min (1574 ipm)
Acceleration X-, Y-, Z-Axis
max. 3 – 5 m/s² (118-197in/s²)
Dimensions
Required space (without peripherals)
Length
4 320 – 6 270 mm (170"-247")
Width
5 390 – 7 390 mm (212"-291")
Height
4 840 – 5 900 mm (191"-232")
