Robust. Precise. Versatile.

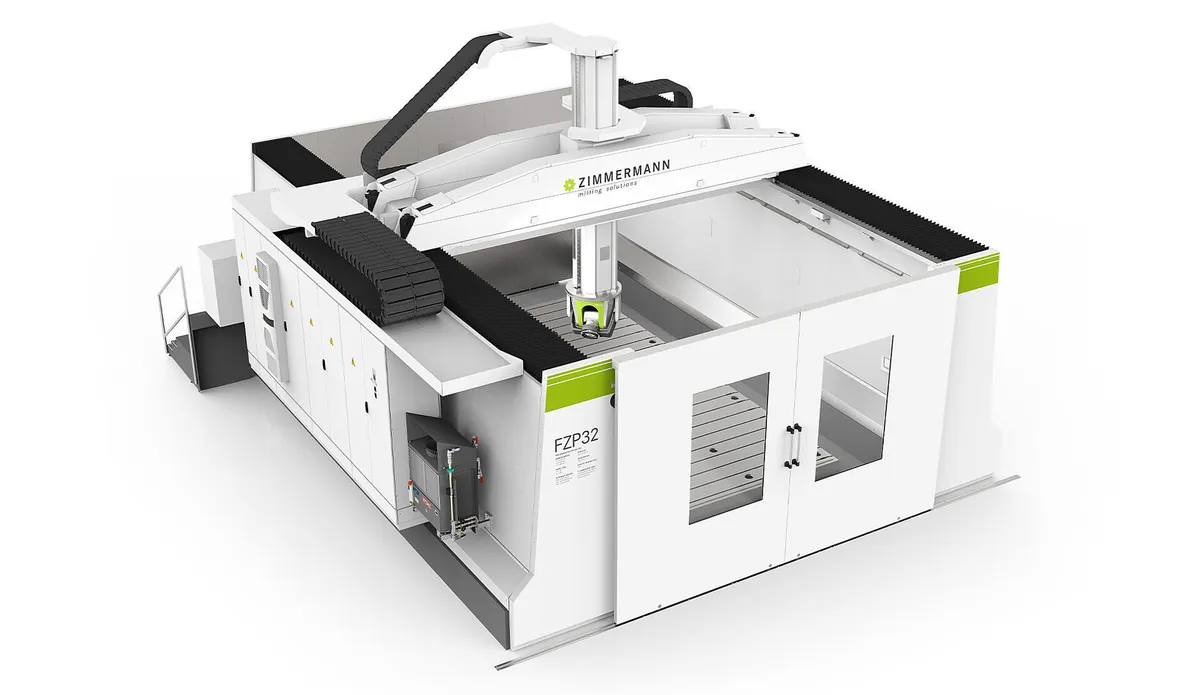

Machining center for large volume components mainly in aluminum or ureol. Robust construction, top travelling gantry, precise material processing. The sophisticated, well-engineered modular system ensures optimum adaptation to every machining case and every workpiece size. The spectrum of applications ranges from 1:1 models in automobile design to aircraft parts and boat hulls to parts for wagon construction.
Working Ranges
X-Axis
3 000 – 20 000 mm (118" - 787")
Y-Axis
2 500/3 000/3 500 mm (98"/118"/138")
Z-Axis
1 500/1 750/2 000 mm (59"/69"/78")
Table size
Length
3 000 – 20 000 mm (118" - 787")
Width
2 500/3 000/3 500 mm (98"/118"/138")2
Height
250 mm (10")
Table load
3 000 kg/m² (max. 20 t)
T-Slots (longitudinal)
18H12
Pitch of T-Slots
200 mm (8")
Drives Linear Axes
Feed rate X-, Y-Axis
up to 60 m/min (2362 ipm)
Feed rate Z-Axis
up to 40 m/min (1574 ipm)
Acceleration X-, Y-, Z-Axis
max. 3 – 5 m/s² (118-197 in/s²)
