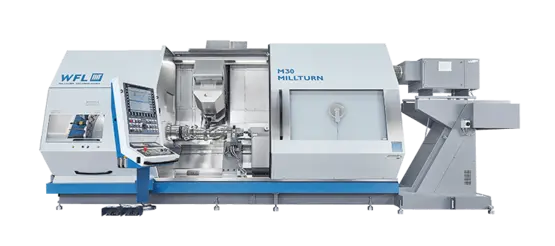

New WFL MillTurn Technologies M30-G MILLTURN | 5-Axis or More CNC Lathes
Have one to sell?
ConditionNew
New
The little one for everything
The multifunctional turning-boring-milling centers M30/M35 and M30-G/M35-G allow complete machining of complex shafts and chuck parts with a swing of up to 520mm and machining lengths of up to 2000mm. It can thus function as a lathe, a 5-axes machining centre and if needed as a gear-cutting or deep-hole drilling machine.
Highlights at a glance
- 80 bar coolant pressure
- Inprocess measuring
- 5-axis-machining
- 4-axis turning
- Workpiece transfer
- 6 side machining
Nominal center distance mm 1800
Swing - ø over Top slide mm 520
Max. Turning- ø between centers mm 520
Max. power, Turning spindle 40% (100%) duty cycle kW 33(29)
Max. torque, Turning spindle 40% (100%) duty cycle Nm 630(550)
Max. spindle speed, Turning spindle min-1 4000
Max. power, Miling spindle 40% (100%) duty cycle kW 20(15)
Max. torque, Milling spindle 40% (100%) duty cycle Nm 250(190)/165(125)/125(95)
Max. spindle speed, Milling spindle min-1 6000/9000/12000
Swiveling angle B - axis degree -110...+110
Travel Y - axis mm 250(-100...+150)
Travel X - axis mm 600(-20...+580)
Tailstock type Mechatronic -
Tool magazine number 40/80
Control SIEMENS type SINUMERIK 840D sl
