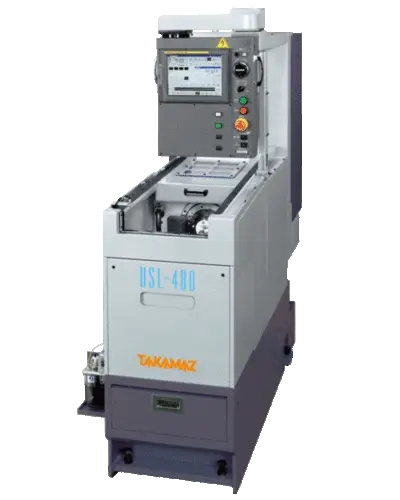

New TAKAMAZ USL-480 | CNC Lathes and Turning Centers

Description

The upgraded model of the ″USL-300″, the definitive slim lathe.

Space savings
Four standard tools can be mounted. The machine width of 480 mm is realized while securing an X-axis stroke of 160 mm. With the 2-unit linked specification, the dimension of each line in the width direction is halved.
Production lines are made more efficient and simpler, it is easy to have a lot of units, and lines can be constructed flexibly.

In pursuit of high-precision cutting
The built-in spindle with "zero-center design" lessens the relative displacement of the spindle unit and achieves greater cutting accuracy.

Shortened cycle time
The built-in spindle motor demonstrates a significant reduction in rise time (0 to 10,000min-1) to 1 second or less.* With the automatic loading mechanism installed, the time required for workpiece loading is only 4 seconds.
*When rotating the spindle equipped with a precision air chuck only
