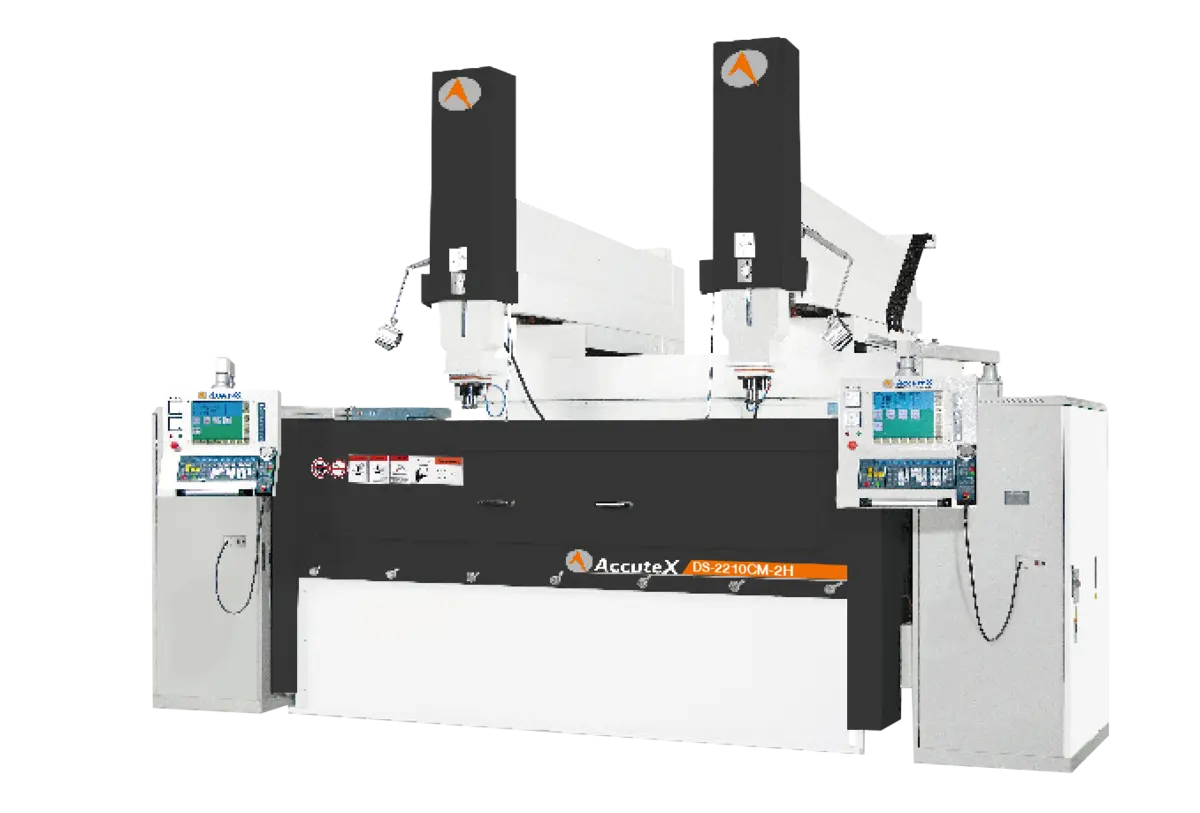

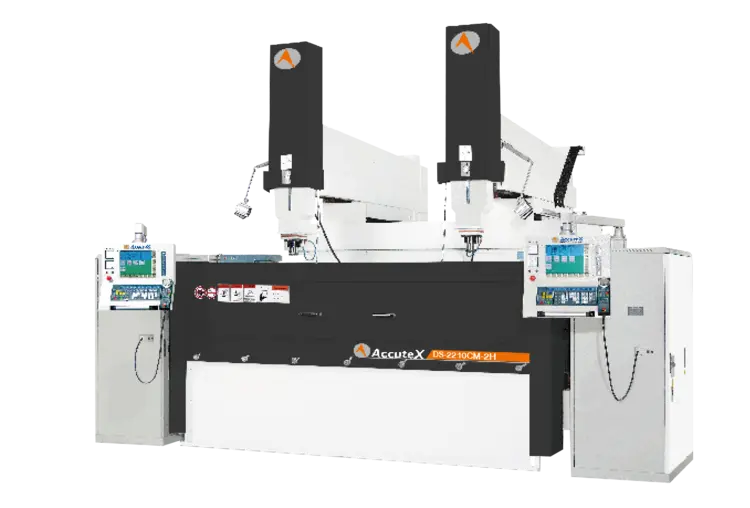

ACCUTEX DS-2210-2H CM DS CMAX SERIES – CNC DIE SINKERS

Description

The AccuteX Die Sinker CMAX Series is a RAM type CNC EDM machine offering a full range of sizes and capabilities. The CMAX series incorporates rigid heavy duty Meehanite castings designed using Finite Element Analysis (FEA) to ensure high accuracy machining. Premium grade ultra fine, double anchored Class 5 ball screws, high resolution 0.00004” linear optical scale for the X,Y and Z axis coupled with high quality, ultra wide linear guide ways produce smooth, precise operation regardless of the work piece size.

With a full complement of available options, the CM Series has the right equipment for every application. The fully functional C Axis can be fit with any commercial chuck for electrode holding compatibility and can hold up to 50 pounds. Shuttle and rotary automatic electrode changers or standalone FANUC robot can be installed to accommodate untended operations from roughing to finishing changing electrodes and work pieces.

Standard Machine Features:
Machining modes include 1, 2 and 3 axis linear, 2 axis contouring and Helical
Dual Digital synchronized pulse generator for best speed, surface and wear
Intelligent automatic DC arc protection and parameter optimization
Optional C Axis with rotation, indexing and helical machining
Optional 4 to 16 position shuttle or rotary automatic electrode changer (AEC)
Optional FANUC robot interface for automatic electrode (AEC) or Work (AWC) changing
Hardened precision work table with standard T Slots
Auto Fire Extinguisher with fire and fluid level sensors
Remote Hand Box
Turcite-B Ways with one shot lubrication
Patented adjustable electrode holder
Flushing ports, 5 emission 1 suction
Conversational programming and automatic machining parameter selection
Main and Sub routine programming with automatic rough to finish sequencing including electrode management
24 fully selectable, configurable 2D and 3D orbit patterns
