Crosscut Saw
Have one to sell?
ConditionNew
New

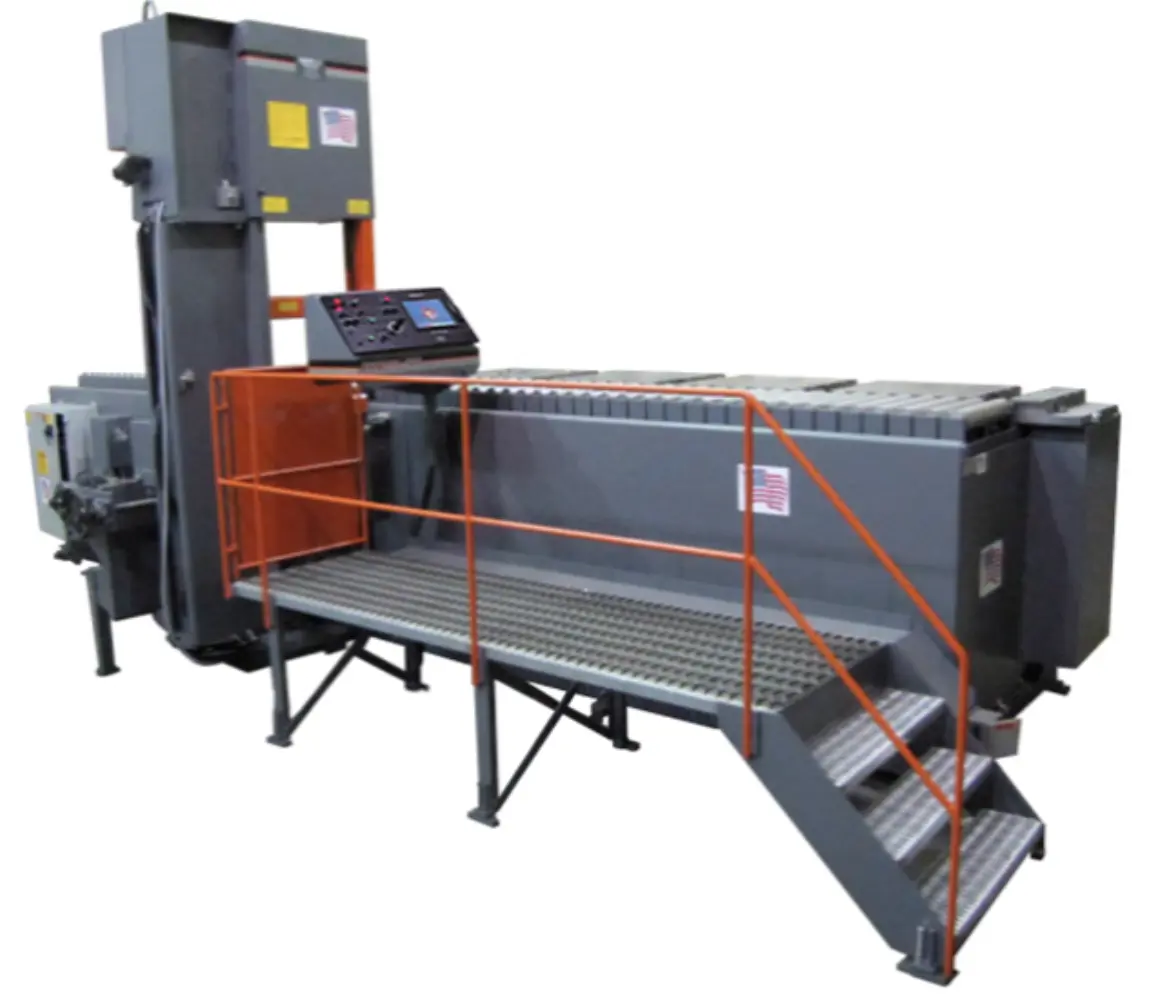

The PHM25 is used for special plate or block sawing applications when the plate requires cutting both in length and width. The arm is computer-controlled and guides are switched to “right angle guides” to cut perpendicular to the table. The Cut Watcher® system is a standard feature.
Standard Features
Computerized Control of Table Travel
Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
Servo Controlled Traverse (SCT)
H-Beam Construction on Table
Variable Blade Speed w/ Readout on Touch Screen
Active "Cut Watcher®" System
Powered Blade Tension
Guide Arm - Powered
Laser Light System
Chip/Swarf Removal System - Chip Conveyor
Partial Catwalk
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Two-Hand Operation Controls
Automatic Blade Idle
Broken Blade Function
Blade Change Interlock
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-25" W x 0-25" H x 144" L
Square Capacity 0-25" (Square)
Round Capacity
Bar-feed N/A
Motor 20 HP
Hydraulic Motor 2 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 22' 0" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
