Continuous Moving Material Saws

Description

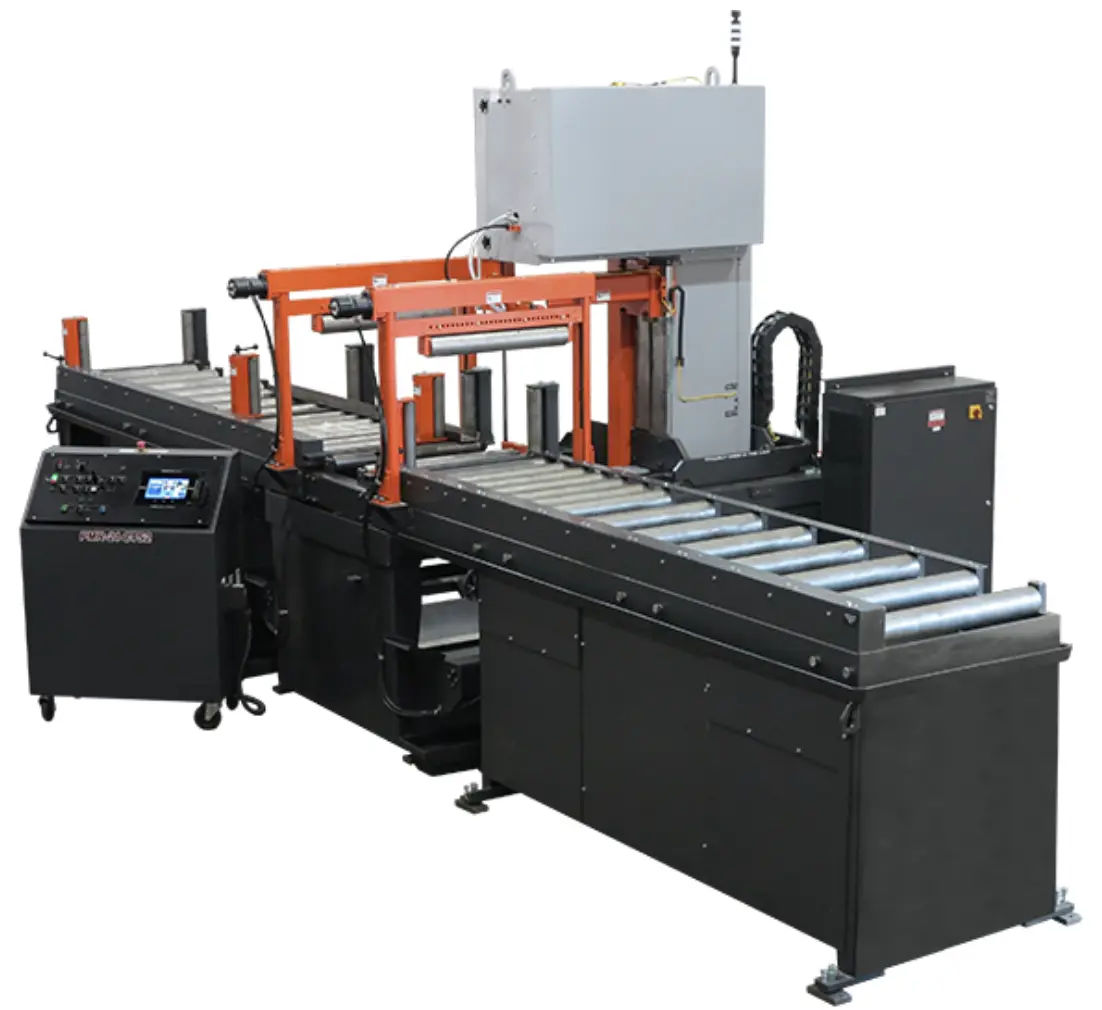

The PMR-21 is used primarily for specialty sawing applications like splitting I-Beams into “T” structural shapes or splitting other structural shapes like tubing. The material advances on a powered roller table traversing through the blade guided by a Top Clamp Roller keeping it engaged with the powered rollers.

Standard Features
Computerized Control of Roller Table Travel
Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
Right Angle Guide Arms for Strip Cutting
Variable Blade Speed w/ Readout on Touch Screen
2 x Adjustable Roller Vise Guides
Carbide Blade Guides
Active "Cut Watcher®" System
Powered Blade Tension
Guide Arm - Powered
10’ Powered Roller Load Table w/ Vertical Alignment Roller, Top Clamp, Low Speed / High Torque Vector Drive
10’ Powered Roller Discharge Table w/ Vertical Alignment Roller, Top Clamp, & Low Speed / High Torque Vector Drive
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
