CNC Aluminum Saw
Have one to sell?
ConditionNew
New

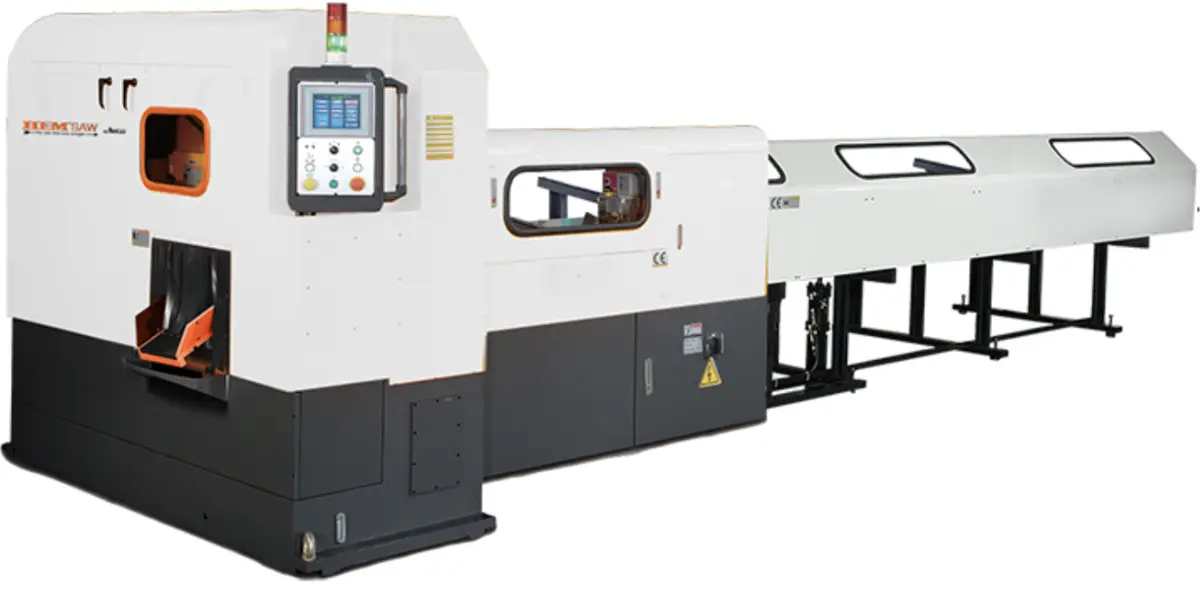

The KTC-150NFC automatic carbide sawing machine cuts non-ferrous materials. The saw head is servo-motor driven and the hydraulics are hard-plumbed for consistent operation. Automatic workpiece loading and part sorting are standard features. The stroking outboard vise provides short remnants, horizontal and vertical vises are included. Options are available.
Standard Features
Uses TCT Carbide Tipped Saw Blade 480 x 2.7t mm
Blade Feed Slope Type
Compact PLC Control & Inverter
Touch Screen Feature for Setting Machine & Cut Functions
Saw Blade Feed Driven by Servo Motor
Hard-Plumbed Hydraulic System
Vise - Hydraulic Horizontal & Vertical Main
Stroking Front "Outboard" Vise (Reduces Remnant Lengths)
20' Standard Loader - Automatic Workpiece Loading
Automatic Product Sorting
Work Piece Positioning
Precision Spindle
Magnetic Power Brake and Fan
Blade Brush
Large Vacuum Dust Collector
Chip Removal - Air Gun
Built-In Coolant System w/ Flood & Mist
208-240V, 50/60hz, 3-Phase
Rectangular Capacity
Square Capacity 0-4.724" (Square)
Round Capacity 0-6" (Diameter)
Bar-feed N/A
Motor 20 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Circular
Primary Circular Blade 480mm Diameter --- [4952-15844 RPM ]
Bundle Cut? No
