Dual Column Double-Miter Saw
Have one to sell?
ConditionNew
New

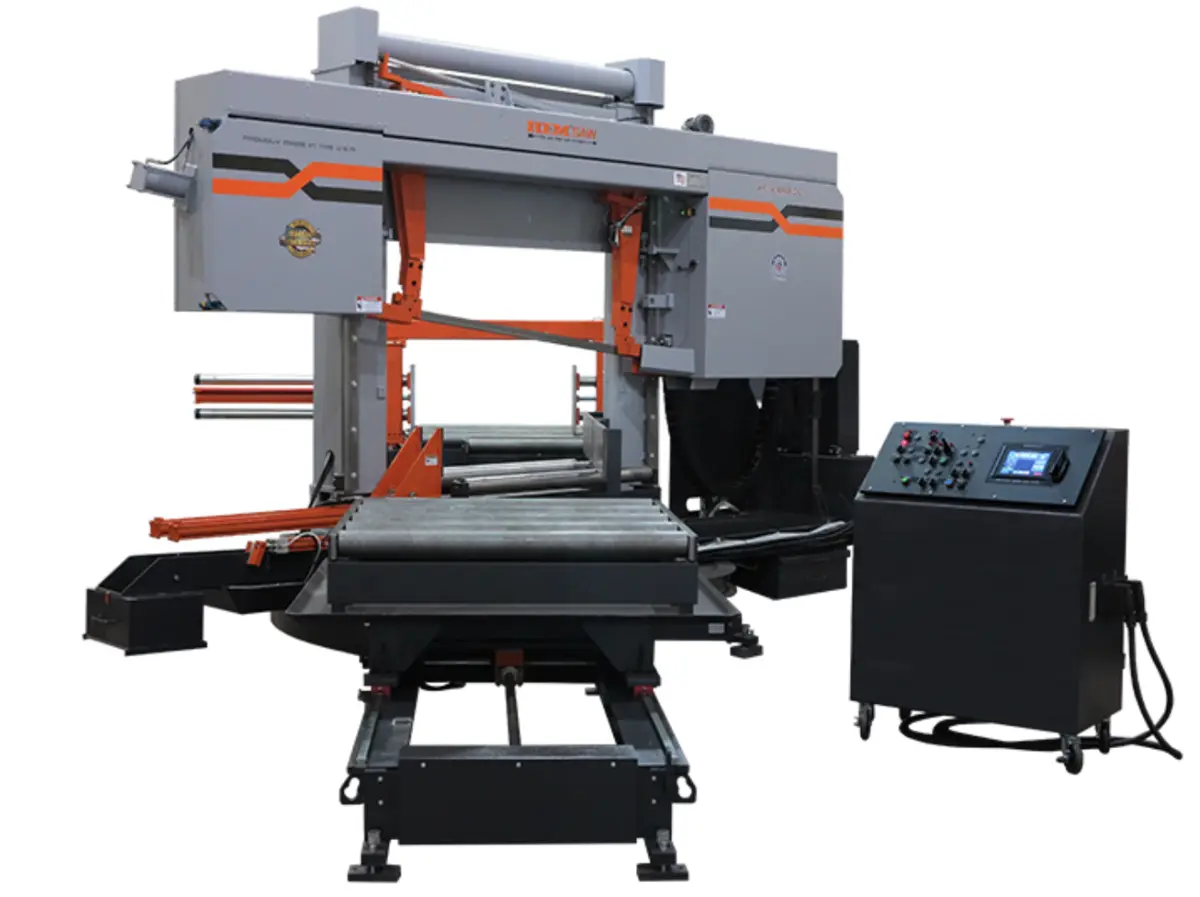

The WF190MRB-DC is a powered double-miter band saw operated using a touch screen mounted in a pedestal control console and cuts miter angles 45ᵒ in one direction and up to 60ᵒ the other direction. Included are vises on both sides of the blade with additional clamping optional.
Standard Features
Pedestal Mounted Control Console w/ 7" Touch Screen
Rotary Base Machine
Powered Miter w/ Angle Readout
Arm Cant - 7° Permanent
Vises on Both Sides of the Blade
Adjustable Clamping Force
Adjustable Feed Rate
Adjustable Cutting Pressure
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Two-Hand Operation Controls
Automatic Blade Idle
Broken Blade Function
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-44" W x 0-25" H
Square Capacity 0-25" (Square)
Round Capacity 0-25" (Diameter)
Bar-feed N/A
Motor 15 HP
Hydraulic Motor 5 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 31' 4" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
