Wide Flange/Bundle Saw

Description

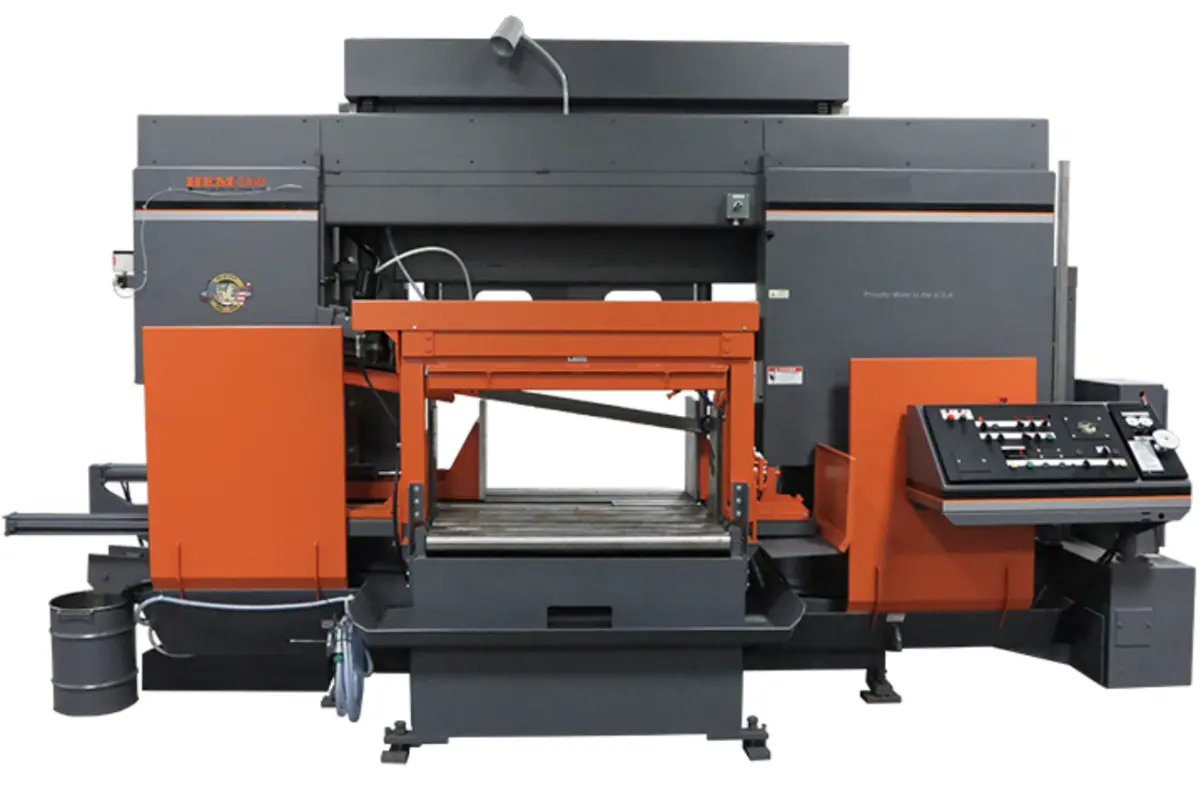

The WF160M band saw is designed to cut structural shapes and bundles efficiently using a fixed 9.2ᵒ canted blade. Operated with a touch-screen control mounted in a swing-away console it includes a full-stroking bi-directional main vise. Many options are available including additional top clamps and outboard vise.

Standard Features
Swing-Away Console - Semi-Automatic Control
Arm Cant - 9.2° Permanent
24" Roller Discharge Table
Vise - Full Stroking Bi-Directional Main
Adjustable Clamping Force
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Adjustable Feed Rate
Adjustable Cutting Pressure
Powered Blade Tension
Coolant System - Flood w/ Wash-Down Hose
Two-Hand Operation Controls
Blade Brush
Broken Blade Function
Automatic Blade Idle
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
