Wide Flange/Bundle Saw
Have one to sell?
ConditionNew
New

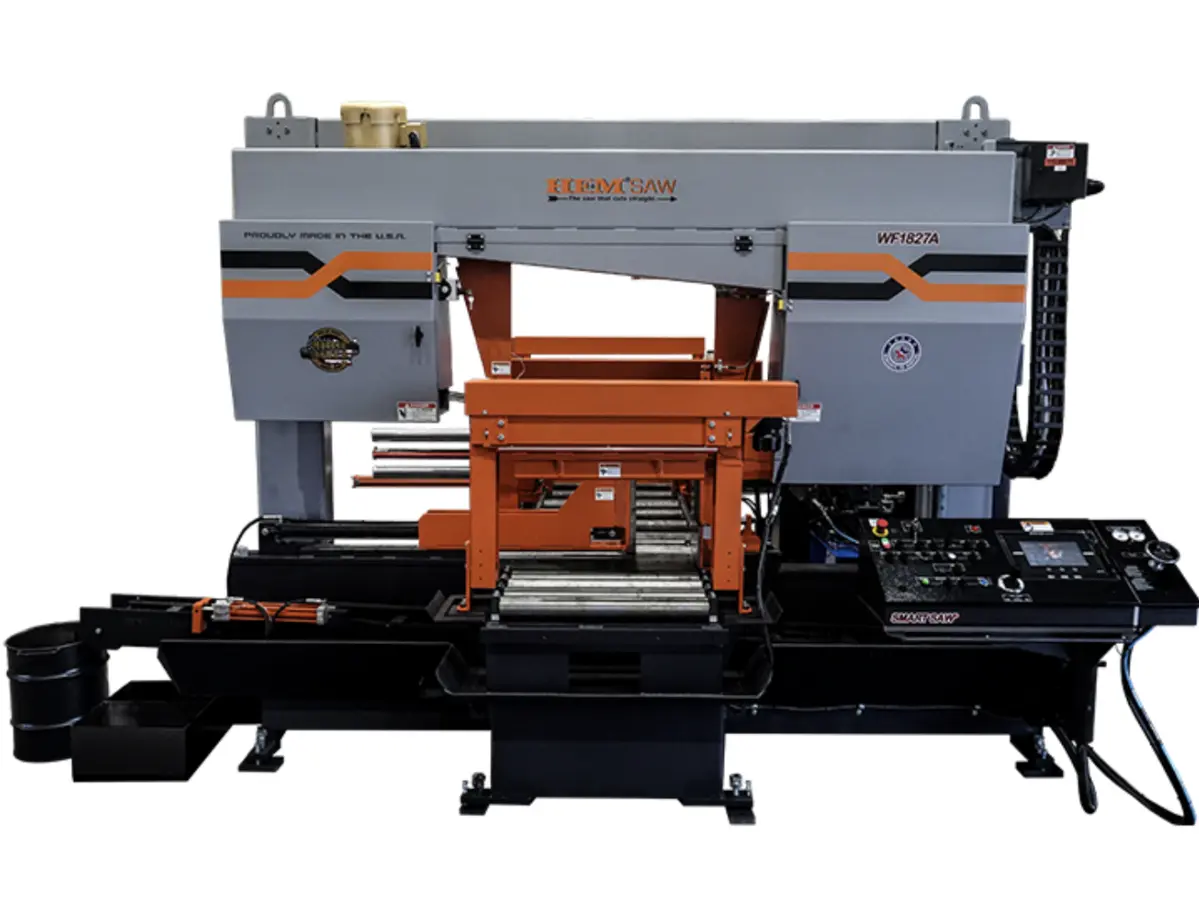

The WF1827A Smart Saw includes a touch screen control mounted in a swing away console. The multi-index 48” twin ball-screw servo-driven bar-feed and bi-directional vises are standard. The 9.2ᵒ fixed blade cant is designed to cut structural shapes and bundles. Many options include additional clamps and 120” bar-feed.
Standard Features
Smart Saw® Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
Arm Cant - 9.2° Permanent
24" Roller Discharge Table
Vise - Full Stroking Bi-Directional Main & Feed
Adjustable Clamping Force
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Guide Arm - Powered
Passive "Cut Watcher®" System
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Chip/Swarf Removal System - Chip Conveyor
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Two-Hand Operation Controls
Automatic Blade Idle
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-27" W x 0-18" H
Square Capacity 0-18" (Square)
Round Capacity 0-18" (Diameter)
Bar-feed 0-48" (Stroke Servo Twin Ball-Screw - Multiple Index)
Motor 10 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 21' 0" L x 1.5" H x .050"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
