Dual Column Band Saw
Have one to sell?
ConditionNew
New

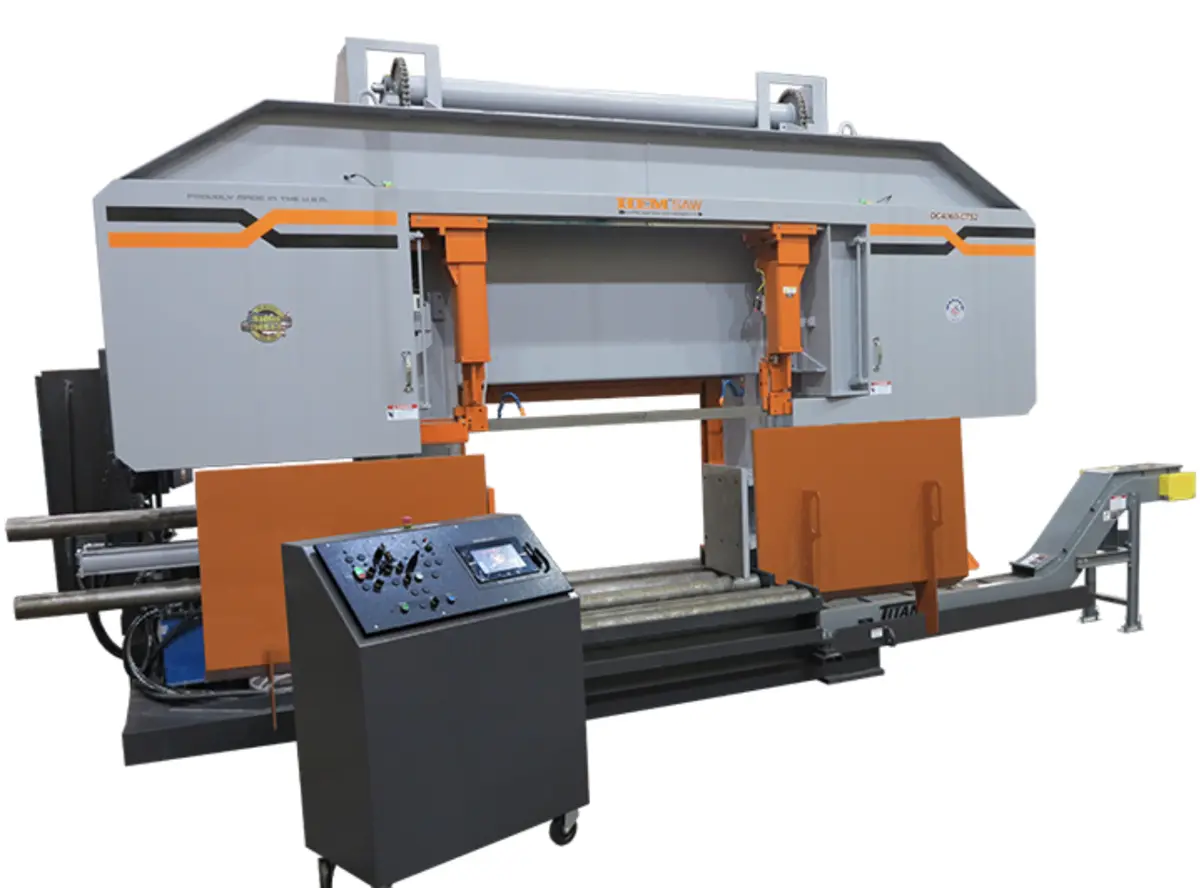

The DC4045 is operated using a touch screen control in a pedestal mounted console and can be operated in manual or semi-automatic modes. Full stroking variable-pressure vise and powered guide arm are standard along with other features. Active Cut Watcher® is standard and options are available
Standard Features
Pedestal Mounted Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
Servo Controlled Traverse (SCT)
8' Powered Base
Vise - Full Stroking Main
Adjustable Clamping Force
Carbide Blade Guides
Active "Cut Watcher®" System
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
Shadow Light System
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Two-Hand Operation Controls
Broken Blade Function
Automatic Blade Idle
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-45" W x 0-40" H
Square Capacity 0-40" (Square)
Round Capacity 0-40" (Diameter)
Bar-feed N/A
Motor 30 HP
Hydraulic Motor 5 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 33' 0" L x 2.625" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
