Dual Column Band Saw
Have one to sell?
ConditionNew
New

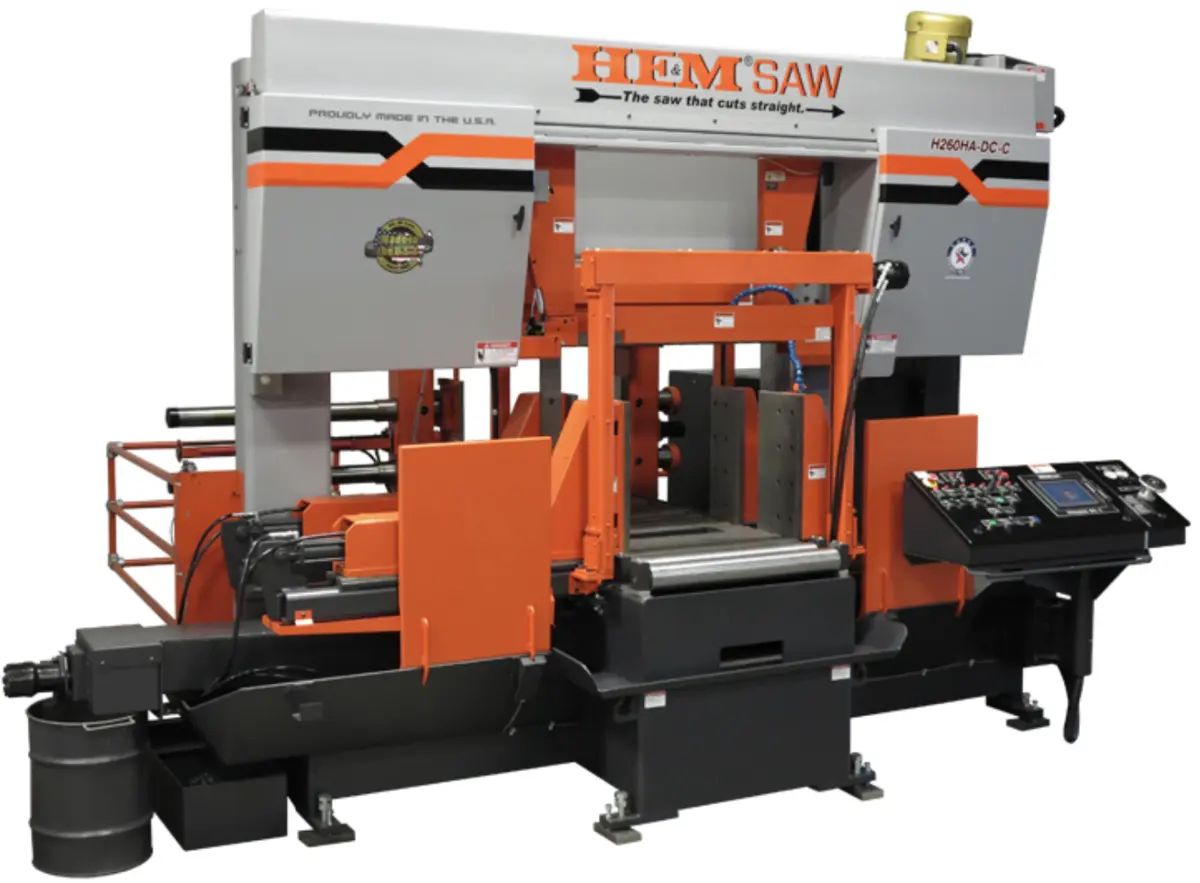

The H260-DC band saw operates using a touch screen control mounted in a swing-away console. A 48” servo twin ball-screw bar-feed is standard and a 120” version is optional. A full-stroking main vise positions automatically with the powered guide arm. The Cut Watcher® System and chip auger are standard.
Standard Features
Smart Saw® Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
24" Solid Discharge Table
Vise - Full Stroking Main & Feed
Adjustable Clamping Force
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Guide Arm Moves in Conjunction w/ Main Vise
Passive "Cut Watcher®" System
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Chip/Swarf Removal System - Chip Auger
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Two-Hand Operation Controls
Automatic Blade Idle
Blade Change Interlock
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-26" W x 0-26" H
Square Capacity 0-26" (Square)
Round Capacity 0-26" (Diameter)
Bar-feed 0-48" (Stroke Servo Twin Ball-Screw - Multiple Index)
Motor 15 HP
Hydraulic Motor 10 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 22' 0" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
