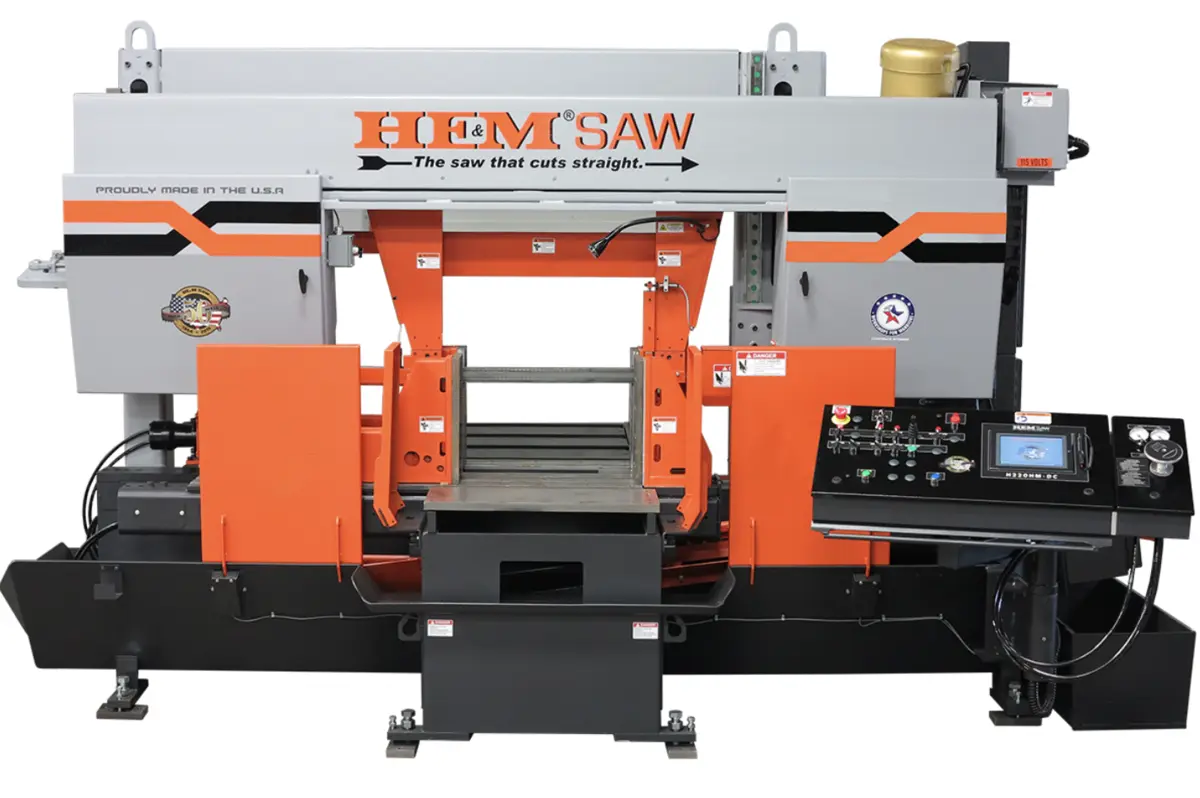

Dual Column Band Saw
Have one to sell?
ConditionNew
New
The H260M-DC operates using touch screen mounted in a swing-away console. The patented Cut Watcher® System and Chip Auger are standard features. A full-stroking main vise positions automatically with the powered guide arm, patented Cut Watcher® system and Chip Auger are standard and many optional features are available.
Standard Features
Swing-Away Console - Semi-Automatic Control
36" Roller Load Table w/ Filler Plates
24" Solid Discharge Table
Vise - Full Stroking Main
Adjustable Clamping Force
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Passive "Cut Watcher®" System
Guide Arm Moves in Conjunction w/ Main Vise
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Chip/Swarf Removal System - Chip Auger
Coolant System - Flood w/ Wash-Down Hose
Broken Blade Function
Two-Hand Operation Controls
Automatic Blade Idle
Blade Change Interlock
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-26" W x 0-26" H
Square Capacity 0-26" (Square)
Round Capacity 0-26" (Diameter)
Bar-feed N/A
Motor 15 HP
Hydraulic Motor 10 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 22' 0" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
