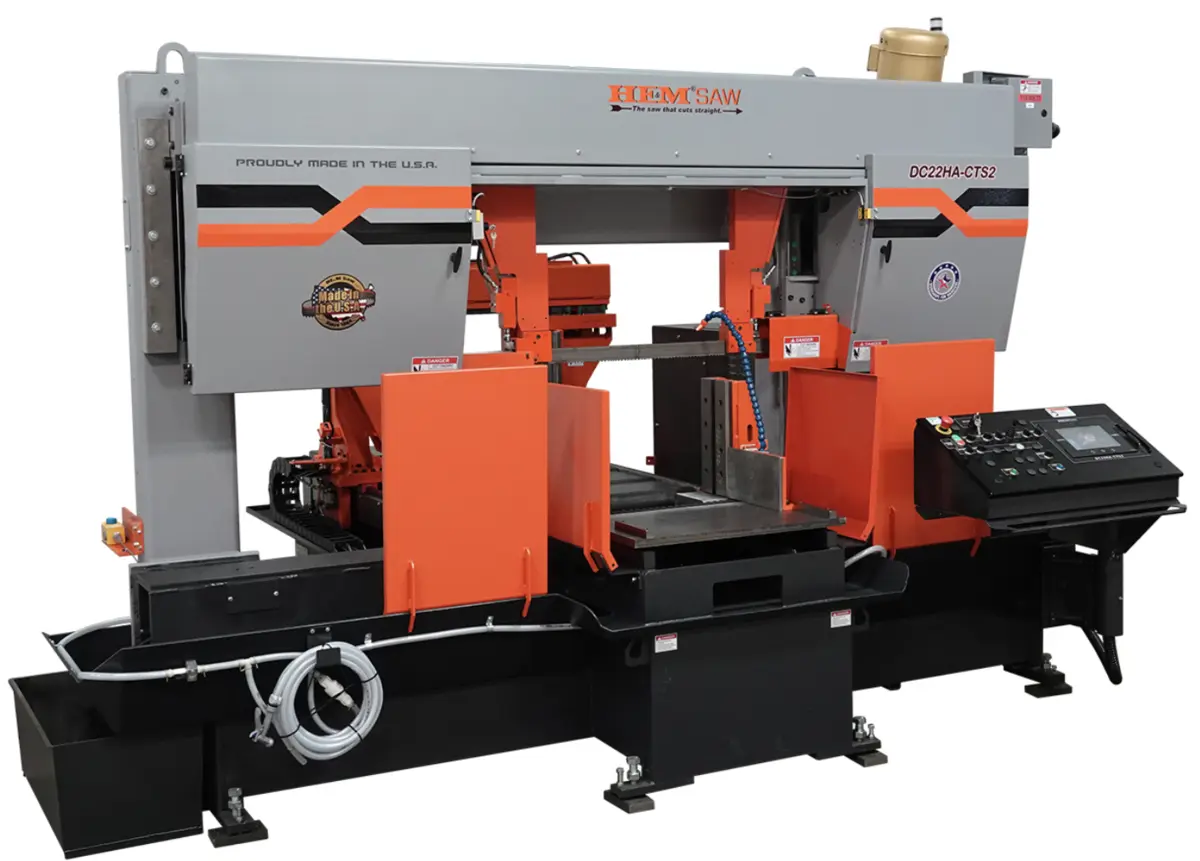

The DC22A band saw operates using a touch screen control mounted in a swing-away console. A 48” servo twin ball-screw bar-feed is standard and a 120” version is optional. A full-stroking main vise positions automatically with the powered guide arm. The Cut Watcher® System and chip auger are standard.
Standard Features
Smart Saw® Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
24" Solid Discharge Table
Full-Stroking Split Main Vise
Adjustable Clamping Force
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Guide Arm Moves in Conjunction w/ Main Vise
Variable Blade Speed w/ Readout on Touch Screen
Passive "Cut Watcher®" System
Adjustable Feed Rate
Adjustable Cutting Pressure
Powered Blade Tension
Chip/Swarf Removal System - Chip Auger
Blade Brush
Coolant System - Flood w/ Wash-Down Hose
Two-Hand Operation Controls
Broken Blade Function
Out-of-Stock Function
Automatic Blade Idle
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-22" W x 0-22" H
Square Capacity 0-22" (Square)
Round Capacity 0-22" (Diameter)
Bar-feed 0-48" (Stroke Servo Twin Ball-Screw - Multiple Index)
Motor 10 HP
Hydraulic Motor 10 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 21' 0" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
