Dual Column Band Saw
Have one to sell?
ConditionNew
New

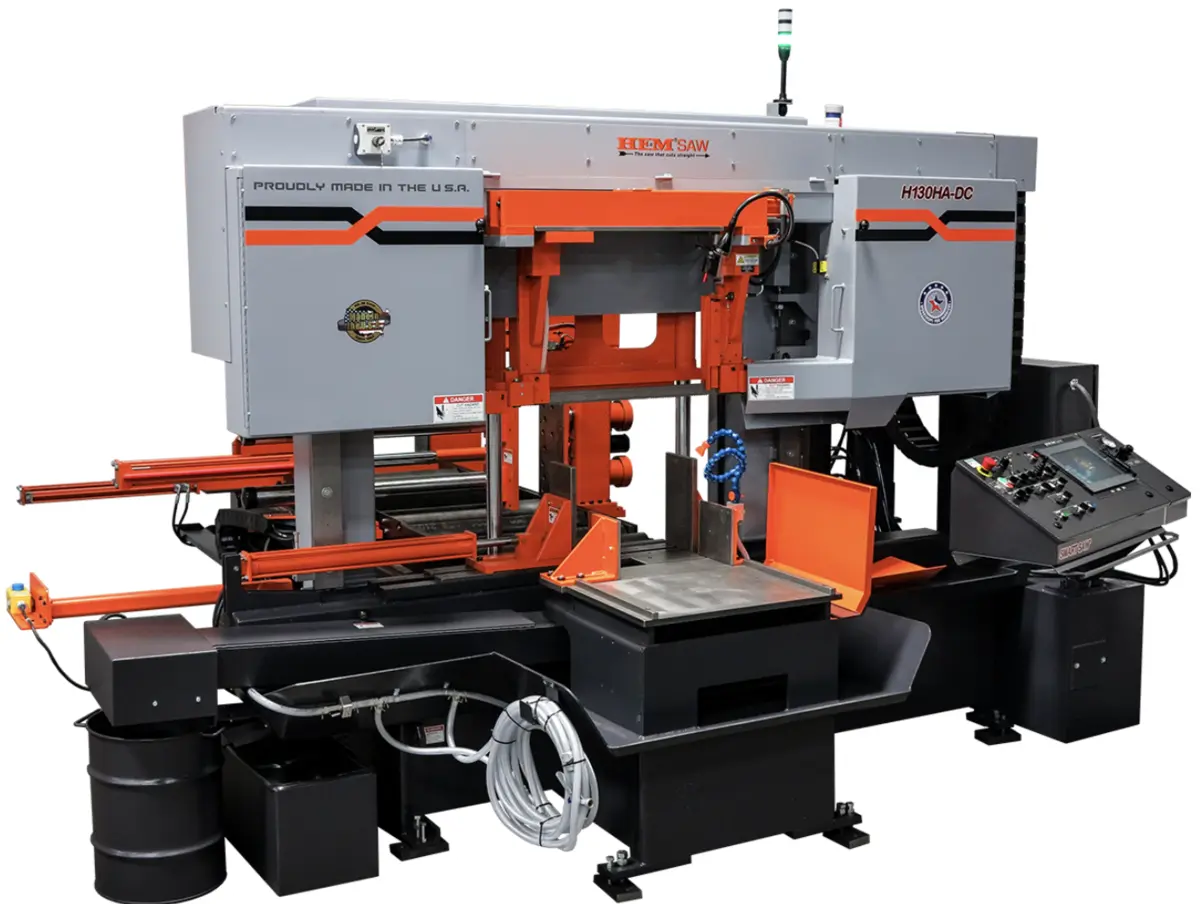

The H130A-DC uses a touch screen control and allows job programming and retains jobs for later use. Standard is a 48” multiple–index servo twin ball-screw bar-feed and an optional 120” multiple-index servo twin ball-screw feed with additional 3rd vise is available.
Standard Features
Smart Saw® Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
24" Solid Discharge Table
Vises - Full Stroking
Adjustable Clamping Force
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Guide Arm - Powered
Passive "Cut Watcher®" System
Variable Blade Speed w/ Readout on Touch Screen
Adjustable Feed Rate
Adjustable Cutting Pressure
Powered Blade Tension
Chip/Swarf Removal System - Chip Auger
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Two-Hand Operation Controls
Broken Blade Function
Out-of-Stock Function
Automatic Blade Idle
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-20" W x 0-20" H
Square Capacity 0-20" (Square)
Round Capacity 0-20" (Diameter)
Bar-feed 0-48" (Stroke Servo Twin Ball-Screw - Multiple Index)
Motor 10 HP
Hydraulic Motor 2 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 19' 0" L x 1.5" H x .050"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
