Dual Column Band Saw
Have one to sell?
ConditionNew
New

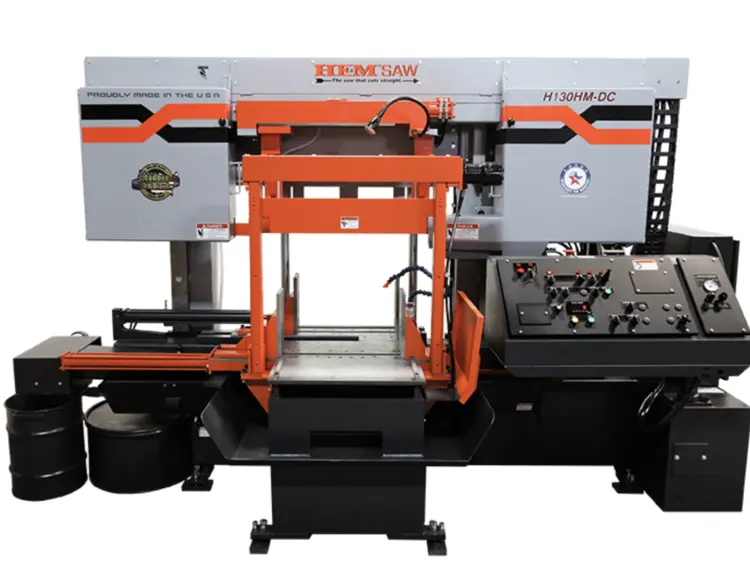

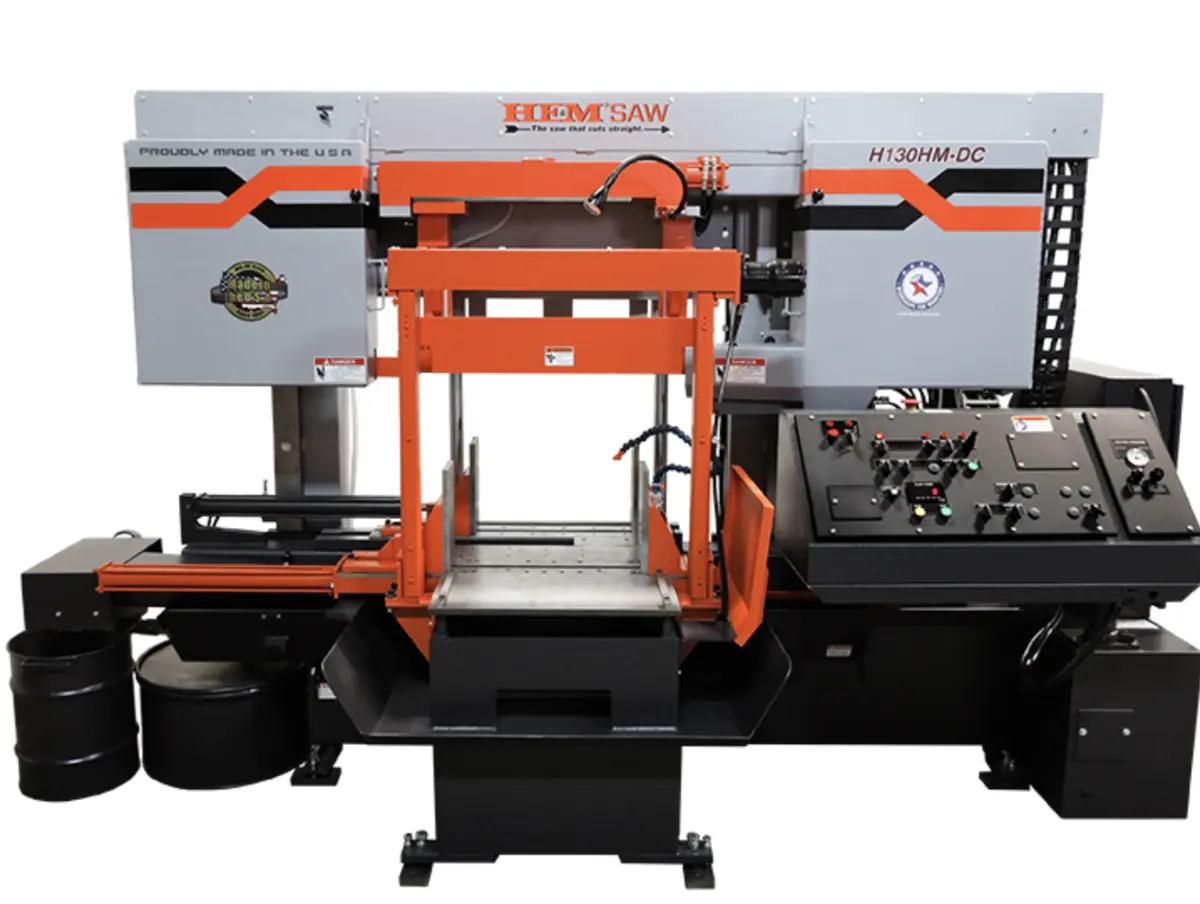

The H130M-DC is operated using a touch screen control mounted in a swing-away console and can be operated in manual or semi-automatic modes. Full stroking variable-pressure vise and powered guide arm are standard along with other features. Many options are available.
Standard Features
Swing-Away Console - Semi-Automatic Control
24" Solid Discharge Table
Vise - Full Stroking Main
Adjustable Clamping Force
Carbide Blade Guides
Lead In/Lead Out Roller Guides
Guide Arm - Powered
Powered Blade Tension
Variable Blade Speed w/ Readout on Touch Screen
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-20" W x 0-20" H
Square Capacity 0-20" (Square)
Round Capacity 0-20" (Diameter)
Bar-feed N/A
Motor 10 HP
Hydraulic Motor 2 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 19' 0" L x 1.5" H x .050"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
