Vertical Band Saw
Have one to sell?
ConditionNew
New

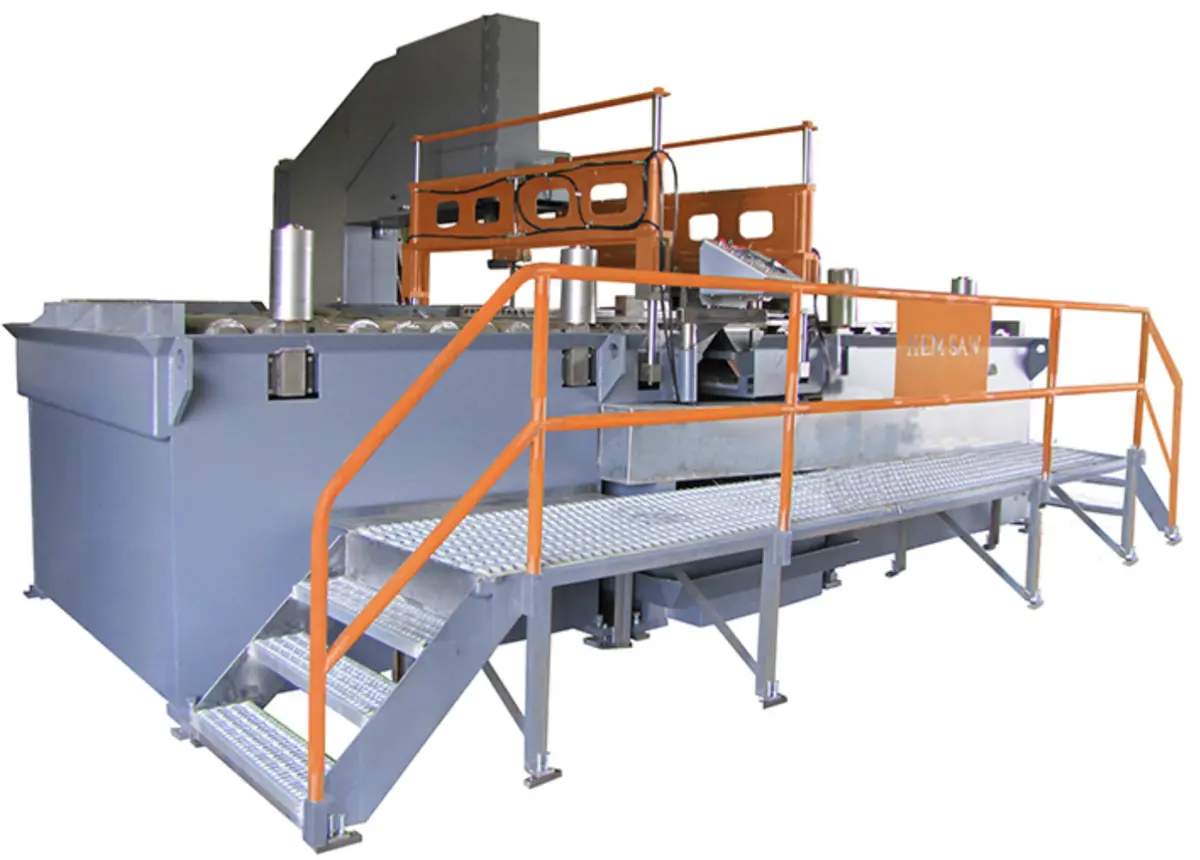

The V750M is a large capacity non-mitering vertical band saw designed to cut large blocks or billets at 90ᵒ. With a 25” high x 75” wide it is equipped with a hefty 20 HP motor and 2” wide blade. A touch screen controls the saw functions, settings, and diagnostics.
Standard Features
Pedestal Mounted Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
Vertical Bridge Clamp - No Side Clamping
Servo Controlled Traverse (SCT)
Active "Cut Watcher®" System
Powered 10' Roller Load Table
Powered 10' Roller Discharge Table
Variable Blade Speed w/ Readout on Touch Screen
Carbide Blade Guides
Guide Arm - Powered
Powered Blade Tension
Chip/Swarf Removal System - Chip Conveyor
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-75" W x 0-25" H
Square Capacity 0-25" (Square)
Round Capacity 0-25" (Diameter)
Bar-feed N/A
Motor 20 HP
Hydraulic Motor 5 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 33' 10" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
