Vertical Band Saw
Have one to sell?
ConditionNew
New

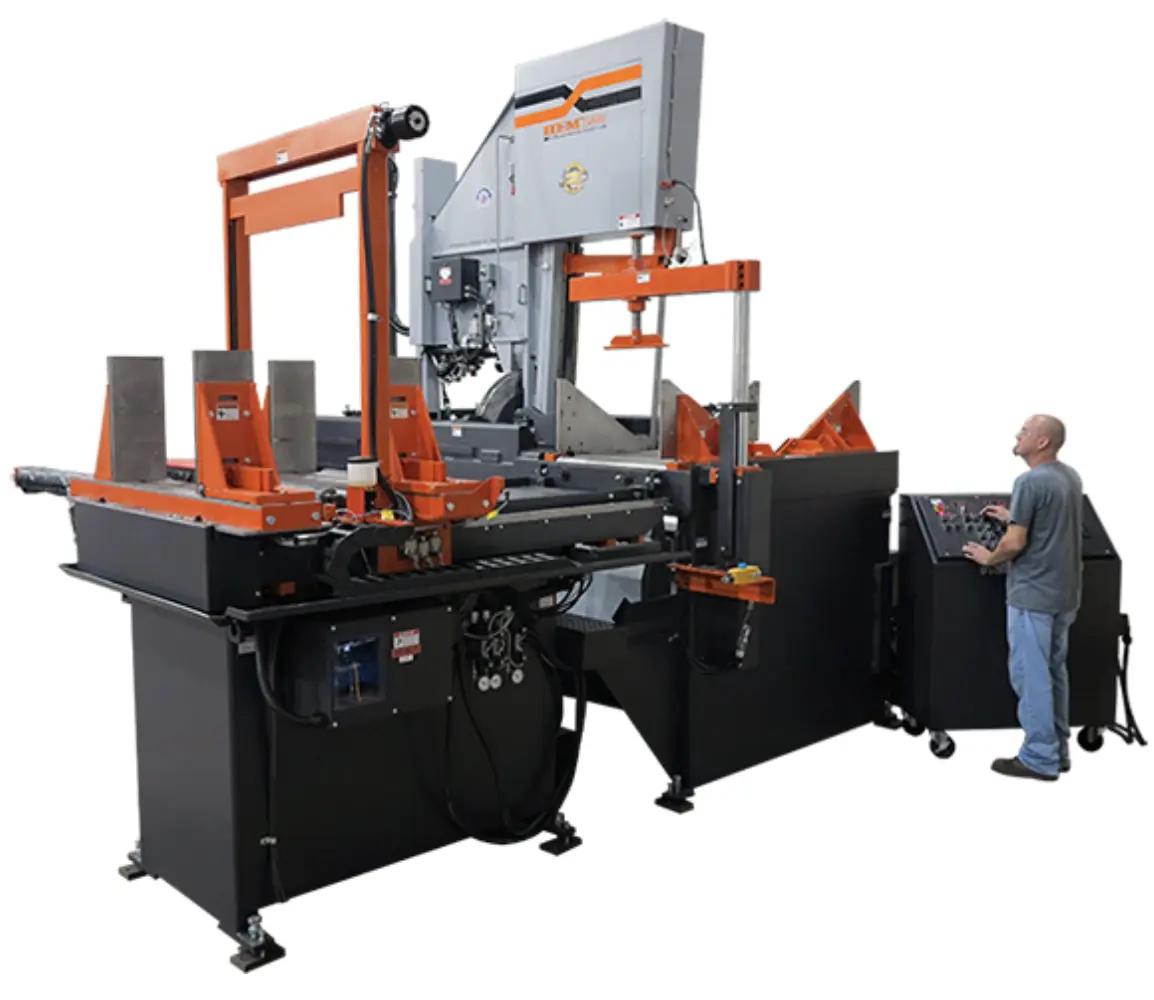

The VT200HA-60-CTS band saw is operated using a touch screen control that includes a material list and allows saving jobs for future use. A touch screen control operates the functions and the programmable arm can miter up to 60ᵒ in both directions.
Standard Features
Swing-Away Control Console w/ 8" Touch Screen
Computer Controlled Feed System
Powered Programmable Tilt w/ Angle Readout
Vises - Full Stroking Including 2nd Main Vise
Adjustable Clamping Force
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Carbide Blade Guides
Passive "Cut Watcher®" System
Forward Cut Stop
Power Raised Lift Up Rollers
Powered Blade Tension
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Chip/Swarf Removal System - Chip Conveyor
Coolant System - Flood w/ Wash-Down Hose
Blade Saver
Two-Hand Operation Controls
Blade Brush
Broken Blade Function
Out-of-Stock Function
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-25" W x 0-36" H
Square Capacity 0-25" (Square)
Round Capacity 0-25" (Diameter)
Bar-feed 0-48" (Stroke Servo Twin Ball-Screw - Multiple Index)
Motor 15 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 24' 8" L x 2" H x .063"
Cantilever Fixed
Bandsaw Blade Speed N/A
Bundle Cut? Yes
