Vertical Band Saw
Have one to sell?
ConditionNew
New

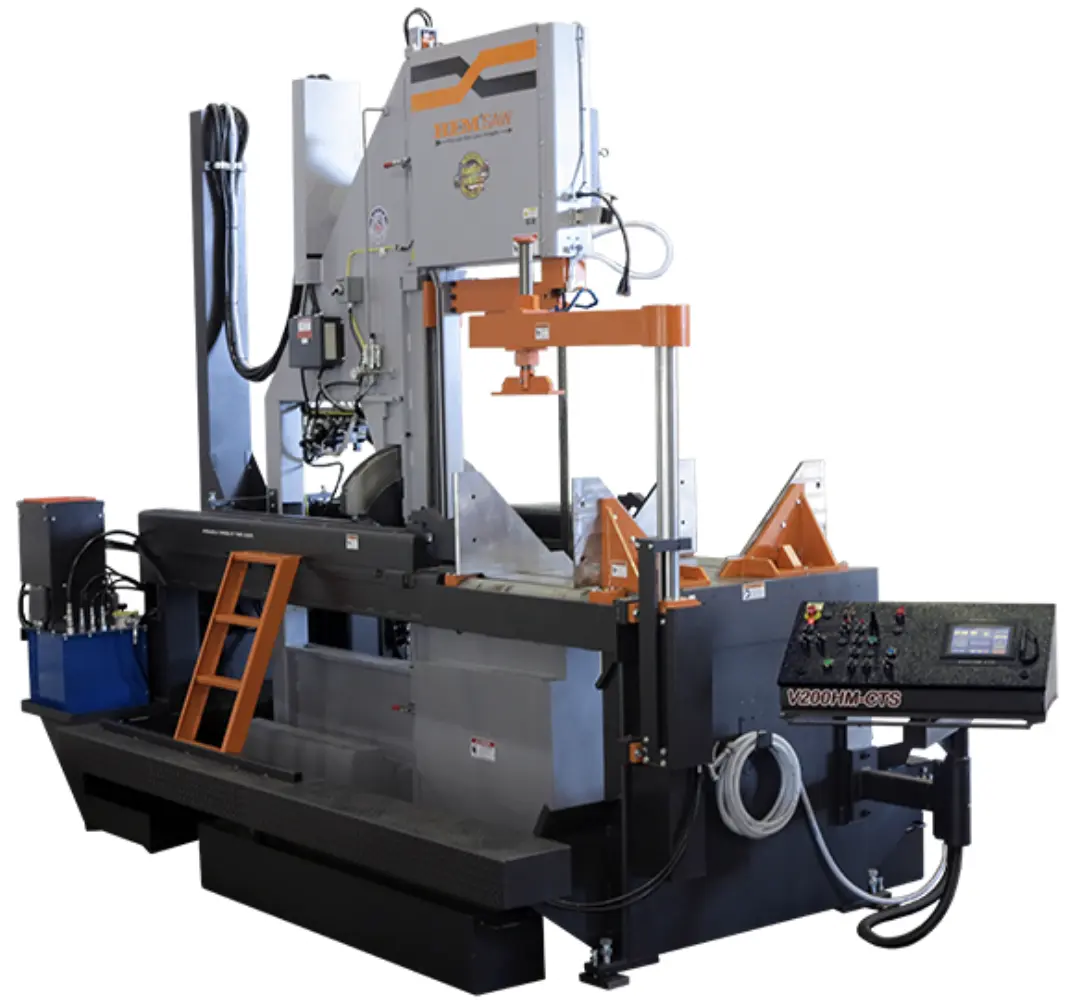

The V200HM-CTS band saw is operated by a touch screen control that is located in a swing-away console at the front of the saw and allows the operator to enter an angle and the arm will travel to that position and stop.
Standard Features
Swing-Away Control Console w/ 7" Touch Screen
Powered Programmable Tilt w/ Angle Readout
Vise - Full Stroking Main & 2nd Main
Adjustable Clamping Force
Broken Blade Function
Carbide Blade Guides
Guide Arm - Powered
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Variable Blade Speed w/ Readout on Touch Screen
Forward Cut Stop
Power Raised Lift Up Rollers
Powered Blade Tension
Chip/Swarf Removal System - Chip Conveyor
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-25" W x 0-36" H
Square Capacity 0-25" (Square)
Round Capacity 0-25" (Diameter)
Bar-feed N/A
Motor 15 HP
Hydraulic Motor 5 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 20' 6" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
