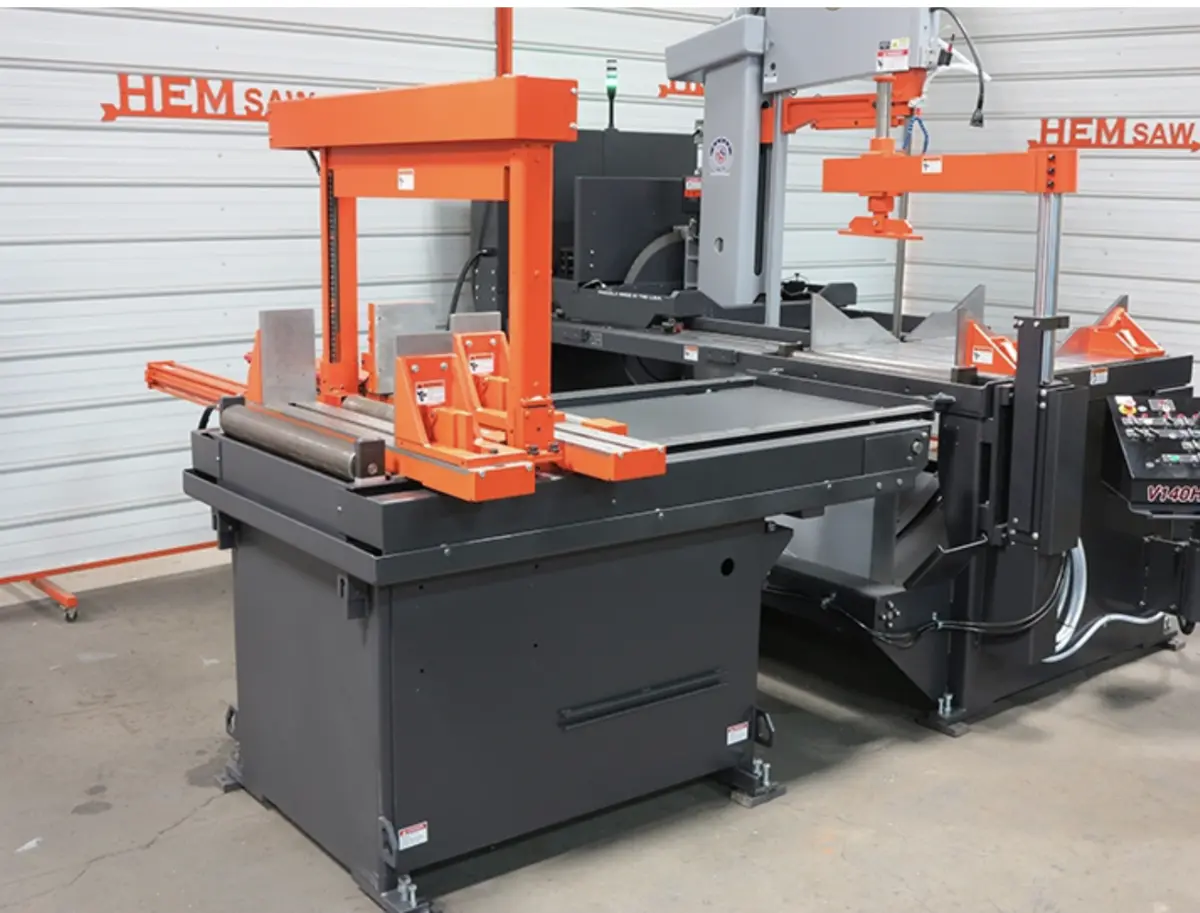

Vertical Band Saw
Have one to sell?
ConditionNew
New
The V140 and VT140HA-60-CTS are heavy-duty band saws only varying from a vertical blade orientation. The touch screen is mounted in a swing-away console. Jobs are stored in the PLC for later recall and use. A hydraulic 48” bar-feed standard; 48” or 120” servo-driven twin-screw bar-feeds are optional.
Standard Features
Swing-Away Control Console w/ 8" Touch Screen
Computer Controlled Feed System
Power Programmable Tilt from Touch Screen
Vise - Full Stroking Main & Feed
Adjustable Clamping Force
Carbide Blade Guides
Passive "Cut Watcher®" System
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Forward Cut Stop
Idle Base Rollers - 1 Each Side of Base
Powered Blade Tension
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Blade Saver
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-22" W x 0-30" H
Square Capacity 0-22" (Square)
Round Capacity 0-22" (Diameter)
Bar-feed 0-48" (Stroke Hydraulic Motor - Multiple Index)
Motor 10 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 20' 0" L x 1.5" H x .050"
Cantilever Fixed
Bandsaw Blade Speed N/A
Bundle Cut? Yes
