Vertical Band Saw
Have one to sell?
ConditionNew
New

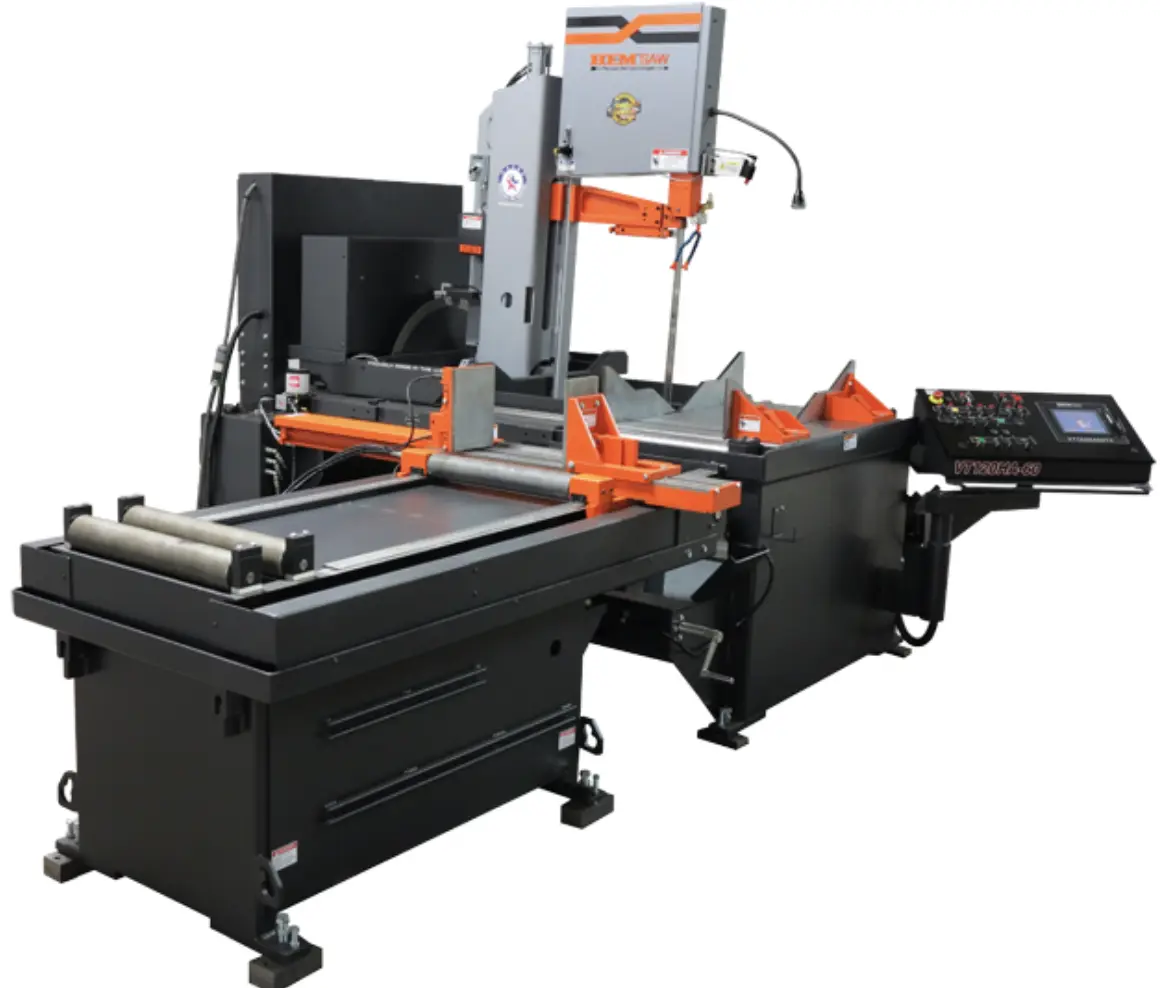

The VT120HA-60-CTS miters to 60ᵒ in both directions. The saw can retain jobs by job number saving size and quantity. Included is the patented Cut Watcher® and the Blade Saver feature. The 48” hydraulic bar-feed is standard and optional are 48” or 120” servo-driven twin ball screw bar-feeds.
Standard Features
Swing-Away Control Console w/ 8" Touch Screen
Computer Controlled Feed System
Powered Programmable Tilt w/ Angle Readout
Vise - Full Stroking Main & Feed
Adjustable Clamping Force
Carbide Blade Guides
Variable Blade Speed w/ Readout on Touch Screen
Guide Arm - Powered
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Passive "Cut Watcher®" System
Powered Blade Tension
Blade Saver
Forward Cut Stop
Idle Base Rollers - 1 Each Side of Base
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Out-of-Stock Function
Broken Blade Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-18" W x 0-24" H
Square Capacity 0-18" (Square)
Round Capacity 0-18" (Diameter)
Bar-feed 0-48" (Stroke Hydraulic Motor - Multiple Index)
Motor 7.5 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 16' 6" L x 1.25" H x .042"
Cantilever Fixed
Bandsaw Blade Speed N/A
Bundle Cut? Yes
