Vertical Band Saw
Have one to sell?
ConditionNew
New

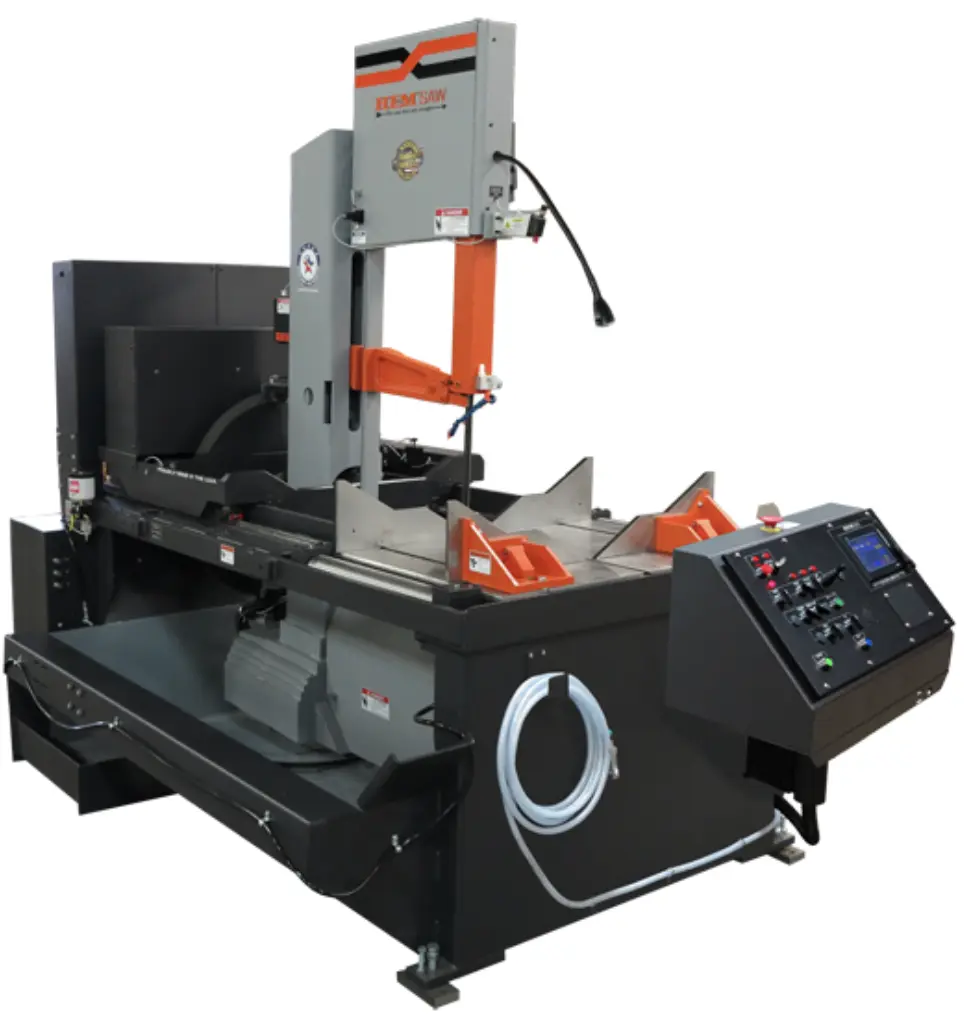

The VT120HM-60-CTS miters up to 60ᵒ in both directions. The control console is located in a swing-away console at the front of the saw. A touch screen is used to operate the various functions on the saw. Optional vises and other features are available.
Standard Features
Swing-Away Control Console w/ 7" Touch Screen
Powered Programmable Tilt w/ Angle Readout
Vise - Full Stroking Main
Adjustable Clamping Force
Variable Blade Speed w/ Readout on Touch Screen
Carbide Blade Guides
Guide Arm - Powered
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Powered Blade Tension
Idle Base Rollers - 1 Each Side of Base
Forward Cut Stop
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-18" W x 0-24" H
Square Capacity 0-18" (Square)
Round Capacity 0-18" (Diameter)
Bar-feed N/A
Motor 7.5 HP
Hydraulic Motor 5 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 16' 6" L x 1.25" H x .042"
Cantilever Fixed
Bandsaw Blade Speed N/A
Bundle Cut? Yes
