Vertical Band Saw
Have one to sell?
ConditionNew
New

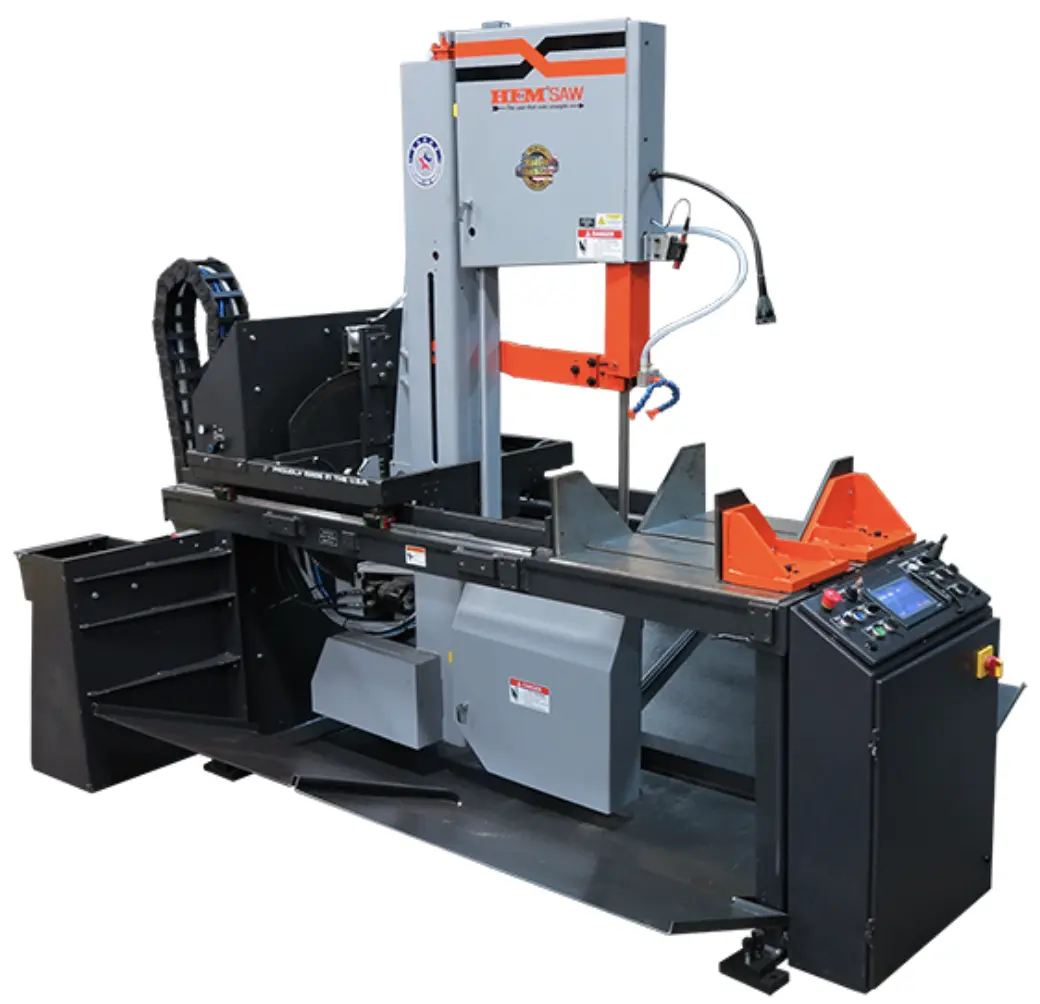

The VT100LM-45 will miter up to 45ᵒ in both directions. A self-contained hydraulic system powers the full stroking vise, arm tilt, and guide arm. Functions are operated from a touch screen control and the saw can be operated in manual or semi-automatic. Various options are available.
Standard Features
Control Console w/ 7" Touch Screen
2 Degree Arm Cant
Powered Tilt w/ Angle Readout on Touch Screen
Vise - Full Stroking Main
Adjustable Clamping Force
Carbide Blade Guides
Variable Blade Speed w/ Readout on Touch Screen
Guide Arm - Powered
Air Powered Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Boltable Side Wings for Coolant Drainage
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
Rectangular Capacity 0-18" W x 0-21.25" H
Square Capacity 0-18" (Square)
Round Capacity 0-18" (Diameter)
Bar-feed N/A
Motor 5 HP
Hydraulic Motor 1 HP
Operation Type Semi-Automatic
Power Source Air
Weight N/A
Blade Type Bandsaw
Blade Size 15' 0" L x 1.25" H x .042"
Cantilever Removable
Bandsaw Blade Speed N/A
Bundle Cut? No
