Horizontal Pivot Band Saw
Have one to sell?
ConditionNew
New

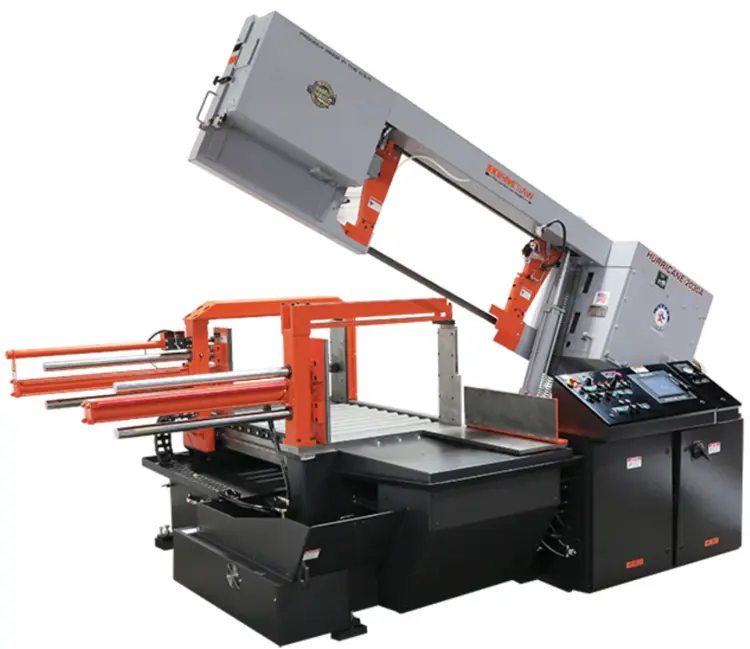

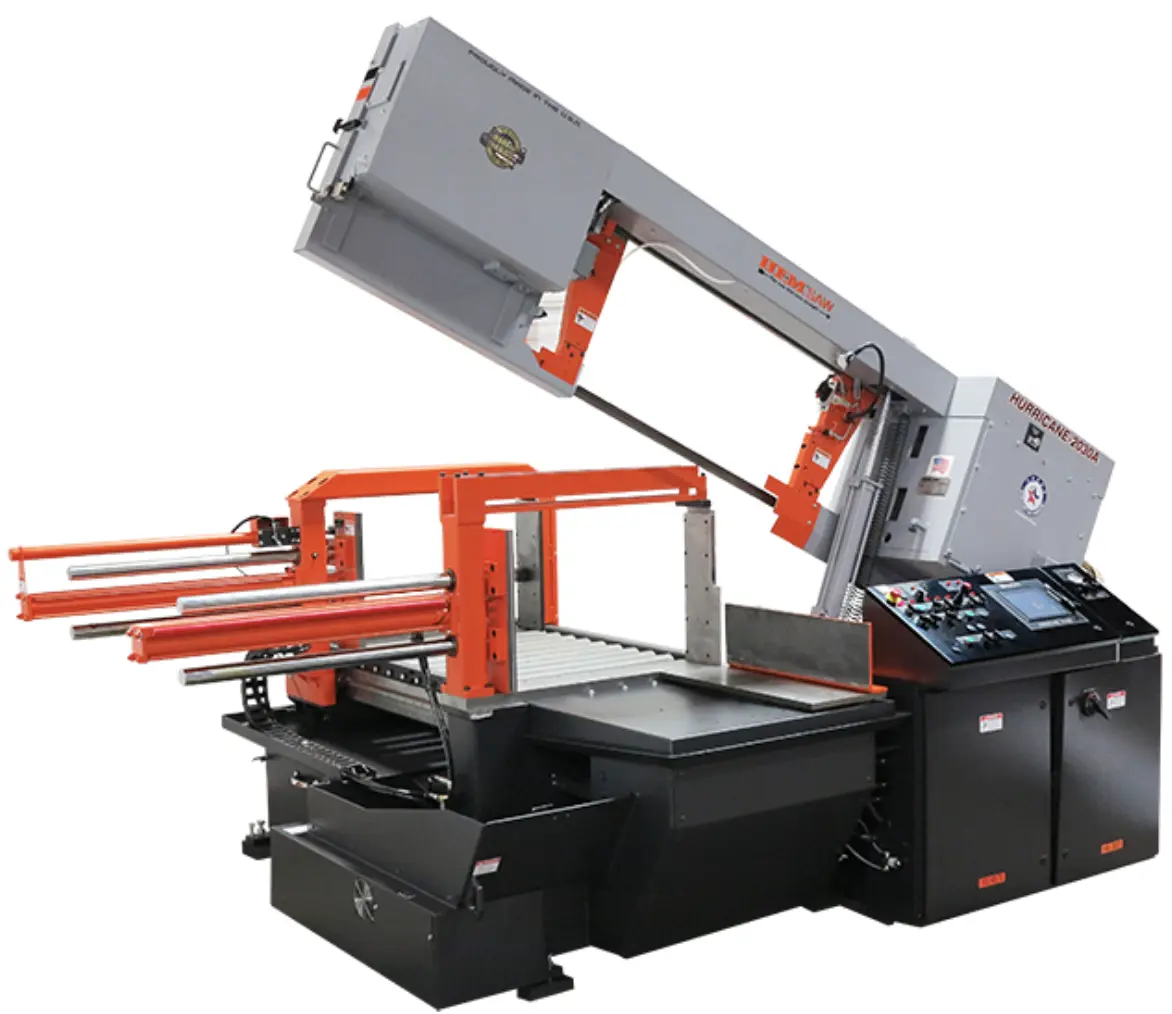

The Hurricane 2030A-CTS band saw allows programmable miter cuts up to 60ᵒ in one direction. A touch screen control is mounted in a swing-away console for settings, operational functions, and diagnostics. The control allows manual, semi-automatic or automatic cutting. A chip auger and Cut Watcher® are included.
Standard Features
Control Console w/ 8" Touch Screen
Computer Controlled Feed System
24" Solid Discharge Table
Vises - Full Stroking
Adjustable Clamping Force
Powered Programmable Miter w/ Angle Readout
Carbide Blade Guides
Guide Arm - Powered
Passive "Cut Watcher®" System
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Chip/Swarf Removal System - Chip Auger
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Rectangular Capacity 0-30" W x 0-20" H
Square Capacity 0-20" (Square)
Round Capacity 0-20" (Diameter)
Bar-feed 0-34" (Stroke Hydraulic Cylinder - Multiple Index)
Motor 10 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 20' 6" L x 1.5" H x .050"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
