HORIZONTAL.
Have one to sell?
ConditionNew
New

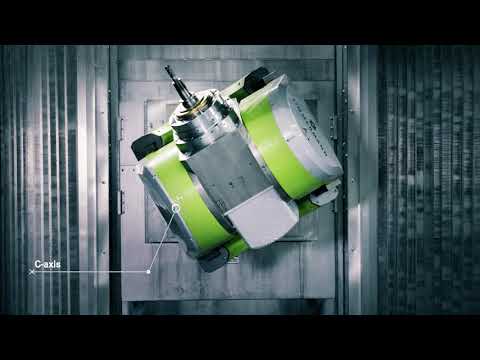

Zimmermann's horizontal machining centers feature pioneering new developments and high-performance milling spindles. They make it possible to manufacture aerospace industry components from a wide range of different materials. The rigid machine bed of the innovative travelling column unit and the highly dynamic Zimmermann milling heads ensure an efficient milling process. The automation system, which is supplied as standard, and the newly developed pallet handling capability are integral components of the horizontal machining centers.
Used in combination with the highly dynamic Zimmermann milling heads, the FZH ensures an extremely efficient milling process during the machining of aluminum and composites.
Working Ranges
X-axis 161"/240"/319" (4,100/6,100/8,100 mm)
Y-axis 63"/82"/102" (1,600/2,100/2,600 mm)
Z-axis 25"/33" (650/850 mm)
Clamping Pallet
Length x Width x Heigth 163" x 65" x 10" (4,100 mm x 1,600 mm x 250 mm)
Pallet Loading 4,000 kg/m2
Threaded Sockets M16 (Standard)
Grid Dimensions 200 mm x 200 mm (8"x 8")
Drives – Linear Axes
Rate of Feed X-axis 2,362 ipm (60 m/min)
Rate of Feed Y-, Z-axis 1.574 ipm (40 m/min)
Acceleration X-, Y-, Z-axis 236 in/s2
(6 m/s2)
Automation
Y1-axis (Lifting Axis) approx. 87" (2,200 mm)
Z1-axis (Feeding Axis) approx. 189" (4,800 mm)
Number of Pallets 2 units
Pallet Changing Time approx. 4 minutes
Connections Ports on the Pallet 1 x Vacuum Port
Safety Housing Safety Housing Protection Fence and Safety GlassesLight Beam Sensors
Pallet Changing Concept 1 x Set-up Unit
1 x Storage Unit
