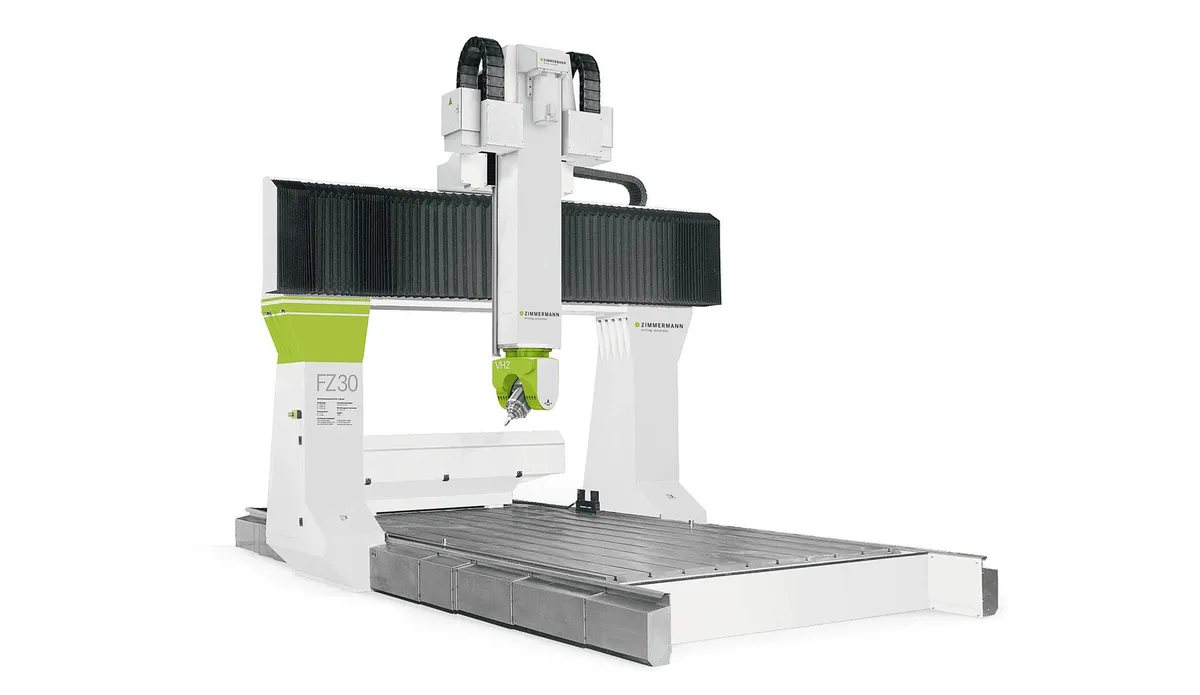

The FZ30 and FZ35 portal milling machines offer an economical solution for a wide variety of tasks. From finishing and with the FZ35 even light roughing of steel and cast iron to the machining of light metals and plastics, materials of all kinds can be milled. These series meet industry-specific requirements from many areas, for example in model and mould making for machining models, moulds, injection moulding and sheet metal forming tools in many variants, in aircraft construction for trimming trim parts, stretch moulding parts, rudders and special applications in acrylic glass as well as in boat and shipbuilding, for the manufacture of laminating moulds or deck structures.
The FZ30 and FZ35 allow an excellent workload, as several, even different parts can be clamped simultaneously and processed one after the other - naturally also in unmanned shifts.
Working Ranges
X-axis 118" - 236" (3.000 - 6.000 mm)
Y-axis 93" - 132" (2.360 - 3.360 mm)
Z-axis 39" - 59" (1.000 - 1.500 mm)
Table Size
Length 197" - 315" (5.000 - 8.000 mm)
Width 79" - 118" (2.000 - 3.000 mm)
Heigth 16" (400 mm)
Table Load max. 30.000 kg/m2
T-Slots (longitudinal) 18H12
optional 18H8
Pitch of T-slots 10" (250 mm)
Feed Drives
Feed Rate on X-, Y-, Z-axis up to 20 m/min
Acceleration linear axes up to 1,5m/s2
