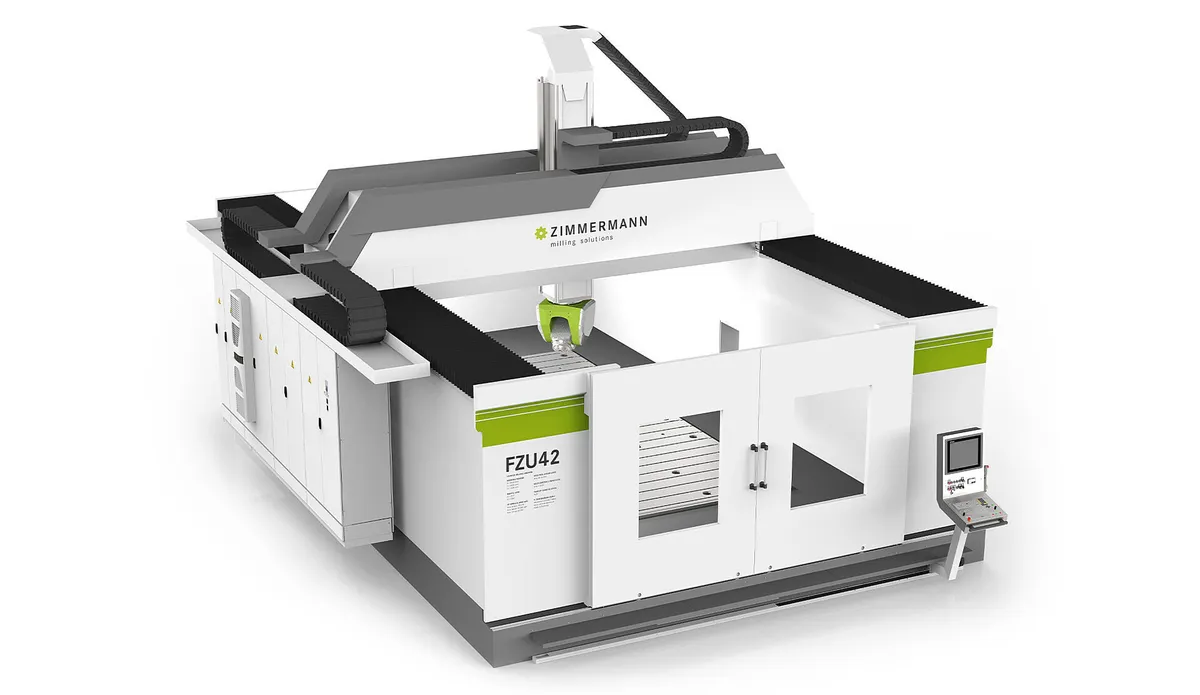

The FZU42 CNC portal milling machine is suitable for simultaneous 5-axis machining of a wide range of materials such as aluminum, steel and titanium. It does not require a fixed machine foundation and can be flexibly installed on solid industrial floors. Its reinforced base plate, which can withstand a maximum weight of up to 15 tons, and the eight support elements reduce vibrations during the milling process - the basic prerequisite for maximum accuracy and optimum surface quality of the workpieces.
The side walls filled with special concrete, the encapsulated working area, the fixed machine table and the thermosymmetrically center-guiding portal, make this milling solution a real power package. The combination of high stability and rigidity, constant moving masses and dynamic drive meet the industry-specific requirements of mold and tool manufacturers in particular.
Working Ranges
X-axis 2,500 / 5,000 / 7,500 mm
Y-axis 3,000 / 3,500 / 4,000 mm
Z-axis 1,250 / 1,500 mm
Table Size
Length 2,500 mm / 5,000 mm / 7,500 mm
Width 3,000 mm / 3,500 mm / 4,000 mm
Heigth 250 mm
Table Load 8,000 kg/m2
max. 35 t
T-Slots (longitudinal) 18H12
optional 18H8
Pitch of T-Slots 250 mm mm)
Drives - Linear Axes
Feed Rate X-, Y-, Z-axis up to 60 m/min
Acceleration X-, Y-, Z-axis max. 3 - 5 m/s2
Dimensions, Weight
Required Space (without peripherals)
Length 5,600 / 8,100 / 10,600 mm
Width 7,700 / 8,200 / 8,700 mm
Height 6,300 / 6,800 mm
Accuracy
Standard Accuracy in accordance to VDI/DGQ 3441 or ISO 230-2
Special Accuracy on request
