RIGID AND FLEXIBLE.
Have one to sell?
ConditionNew
New

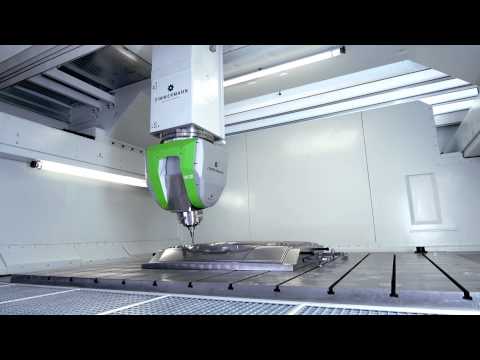

The CNC portal milling machine is suitable for machining aluminum and composite materials. The unibody machine dispenses with a fixed machine foundation and can be flexibly set up on solid industrial floors. The machine table is firmly connected to the FZU37, which means that the workpiece does not have to be moved during machining. Regardless of the weight and size of the workpiece, the milling process is highly precise.
The FZU37 guarantees a consistent, efficient milling process. The combination of high stability and rigidity meets industry-specific requirements in model, tool and mold making, the aerospace and automotive industries, and in the field of alternative energies.
Working Ranges
X-axis 2,500 mm / 5,000 mm / 7,500 mm
Y-axis 3,000 mm / 3,500 mm / 4,000 mm
Z-axis 1,250 / 1,500 mm
Table Size
Length 2,500 mm / 5,000 mm / 7,500 mm
Width 3,000 mm / 3,500 mm / 4,000 mm
Heigth 250 mm
Table Load 8,000 kg/m2
max. 35 t
T-Slots (longitudinal) 18H12
optional 18H8
Pitch of T-Slots 250 mm
Drives - Linear Axes
Feed Rate X-, Y-, Z-axis up to 60 m/min
Acceleration X-, Y-, Z-axis max. 3 - 5 m/s2)
Dimensions, Weight
Required Space (without peripherals) Y = 3,000 mm
Length 5,100–10,100 mm
Width 7,600 – 8,600 mm
Height 5,950 – 6,450 mm
Accuracy
Standard Accuracy in accordance to VDI/DGQ 3441 or ISO 230-2
Special Accuracy on request
