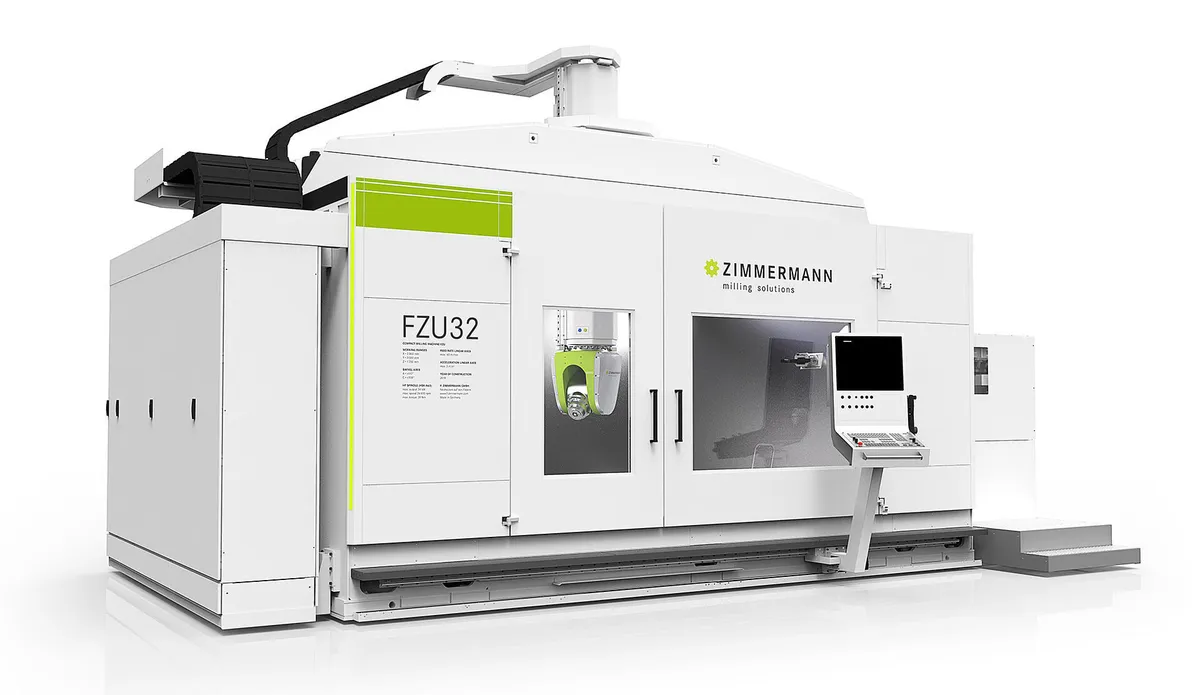

The FZU32 is a remarkably compact 5-axis gantry milling machine for machining aluminum, fiber composite materials, plastics and Ureol. The particularly rigid and newly developed center lead portal enables us to meet the ever growing requirements in the model and mold making industry. The thermo-symmetrical construction makes the FZU32 less susceptible to adverse ambient conditions.
The modular design of the mono-block hook machine offers different lengths and height versions, as well as extensive equipment options, such as process cooling with cooling lubricants and/or minimum quantity lubrication. The great flexibility in material handling, the highest surface quality and accuracy result in optimum price/performance density.
Working Ranges
X-axis 79"/157"/236" (2,000/4,000/6,000 mm)
Y-axis 118" (3,000 mm)
Z-axis 49"/59" (1,250/1,500 mm)
Table Size
Length 87"/165"/244" (2,200/4,200/6,200 mm)
Width 118" (3,000 mm)
Height 21" (550 mm)
Table Load 6,000 kg/m2
(max. 10,000 kg/m2)
T-Slots (longitudinal) 18H12
Pitch of T-Slots 10" (250 mm)
Drives - Linear Axes
Feed Rate X-, Y-, Z-axis up to 2.362 ipm (60 m/min)
Acceleration X-, Y-, Z-axis up to 118 in/s2 (6 m/s2)
Dimensions, Weight
Required space(without peripherals)
Length 3.500/5.500/7.500 mm (138"/217"/295")
Width 7.500 mm (295")
Height 4.900 / 5.400 mm (193"/213")
Total Weight ca. 35.000 kg (X = 79" (2,000 mm))
Accuracy
Standard Accuracy in accordance to VDI/DGQ 3441 or ISO 230-2
Special Accuracy on request
Options
CNC Control Heidenhain TNC 640 Siemens Sinumerik 840D sl
Tool Probe Renishaw RMP 60 Q (Option) m&h 20.41- multi (optional)
Tool Measuring System Blum Control NT – Micro (optional)
Work Area Cover included
Tool Changer Chain Magazin 31x (included) / 62x (optional)
Chip conveyor optional (Chip box included)
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing External and Through Tool
