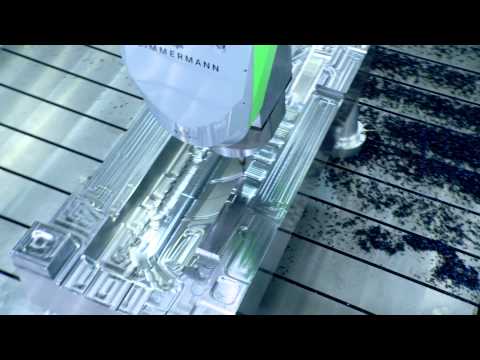

The FZP42 CNC portal milling machine has a modular design which allows the combination of different operating ranges, travel distances, milling heads and CNC controls. The gantry construction makes it possible to machine components of all kinds. The machine table of the FZP42 is firmly anchored to the machine base, which means that workpieces do not have to be moved. The milling process is highly precise, regardless of weight and size.
The the structurally rigid center lead portal, the cross- and Z-slides and the dynamic VH60 milling head, facilitate a consistent, efficient milling process. Thanks to its combination of high thermo-stability and rigidity this machine is able to meet all the requirements of model making, tool and mold construction, including the demands of the aerospace and automotive industries. It is also suitable for machining of workpieces in shipbuilding and the alternative energy industry.
Working Ranges
X-axis 3,000 - 40,000 mm
Y-axis 2,500 - 6,000 mm
Z-axis 1,250 - 3,000 mm
Table Size
Length 3,000 - 40,000 mm
Width 2,500 - 6,000 mm
Heigth 250 mm
Table Load max. 15,000 kg/m2
T-Slots (longitudinal) 18H12
optional 18H8
Pitch of T-Slots 250 mm
Drives - Linear Axes
Feed Rate X-, Y-, Z-axis up to 60 m/min
Acceleration X-, Y-, Z-axis max. 3 - 5 m/s2
Dimensions, Weight
Required Space (without peripherals) Y = 3,000 mm
Length 6,100 – 43,100 mm
Width 7,200 – 10,700 mm
Height 5,700 – 8,950 mm
Accuracy
Standard Accuracy in accordance to VDI/DGQ 3441 or ISO 230-2
Special Accuracy on request
