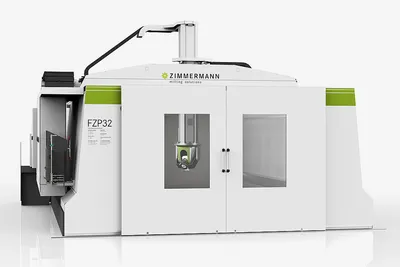

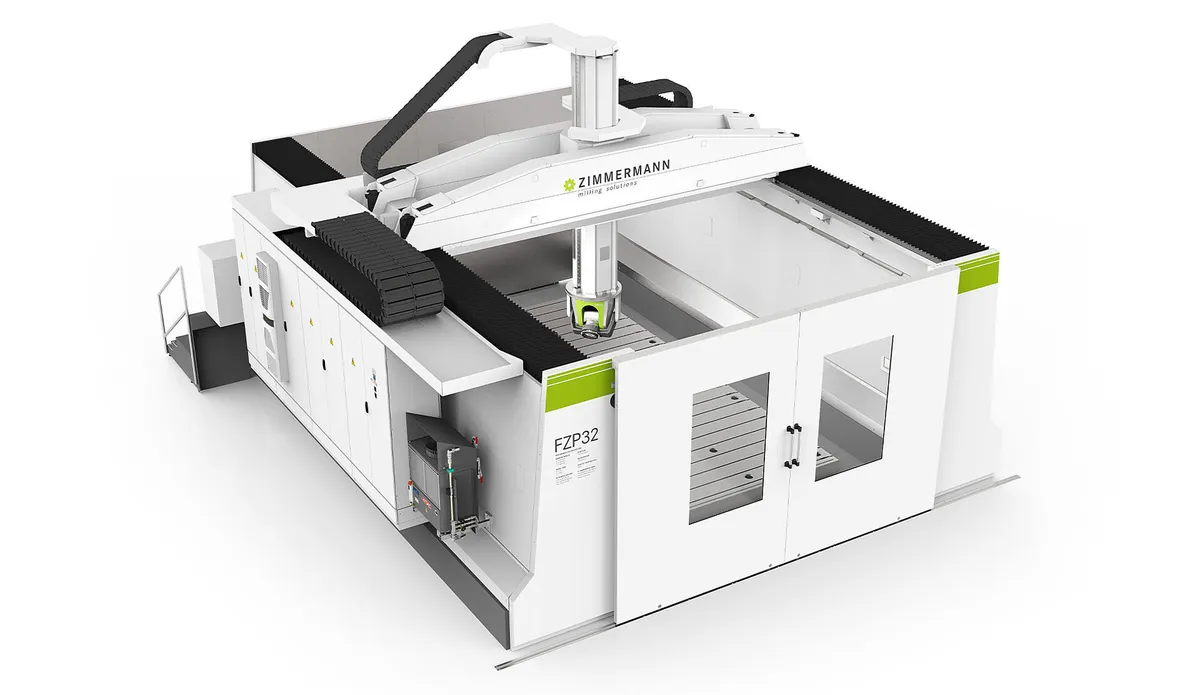

The FZP32 is our next generation FZP-line 5-axis gantry for the machining of aluminum, fiber composite materials, plastics and resin. The particularly rigid and newly developed center lead portal enables us to meet the ever growing demands in the aerospace and model/mold making industry. Its thermo-symmetrical construction makes the FZP32 less susceptible to adverse ambient conditions thus ensuring excellent surface quality. The flexible design of our FZP-line gantries offer different lengths and height versions, as well as extensive equipment options, such as process cooling with minimum quantity lubrication and/or an effective dust extraction system for abbrasive materials and resin. Due to it's great flexibility in material handling, high surface quality and accuracy, the FZP32 offers true superior machining with high efficiency.
Working Ranges
X-axis 118"-394" (3,000-10,000 mm)
Y-axis 98"/118"/138"/157" (2,500/3,000/3,500/4,000 mm)
Z-axis 59"/79"/98" (1,500/2,000/2,500 mm)
Table Size
Length 118"-394" (3,000-10,000 mm)
Width 98"/118"/138"/157" (2,500/3,000/3,500/4,000 mm)
Height 7" (180 mm)
Table load 2,000 kg/m²
T-Slots (longitudinal) 18H12
Pitch of T-slots 10" (250 mm)
Table surface even/above floor level
Feed Rates
Feed rate X-, Y-, Z-axis up to 2,362 ipm (60 m/min)
Acceleration X-, Y-, Z-axis up to 118 in/s² (3 m/s²)
Accuracy
Standard accuracy in accordance to VDI/DGQ 3441 or ISO 230-2
Special accuracy on request
