Moving Saw Head Saw

Description

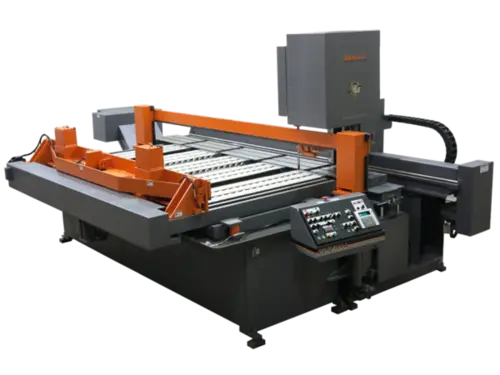

The PS18-144A is a traveling-arm plate saw; the arm travels through the material and is computer-controlled using a touch screen interface. It includes a chip conveyor, patented Cut Watcher® system, Laser Light, and automatic material indexing as standard features. Options include a Servo Controlled Traverse (SCT) and Active Cut Watcher®.

Standard Features
Computerized Control of Head Travel
Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
H-Beam Construction on Table
Top Clamp Bridge
Positioning Fence w/ Automatic Indexing
Variable Blade Speed w/ Readout on Touch Screen
Passive "Cut Watcher®" System
Powered Blade Tension
Guide Arm - Powered
Laser Light System
Chip/Swarf Removal System - Chip Conveyor
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Two-Hand Operation Controls
Automatic Blade Idle
Broken Blade Function
Blade Change Interlock
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
