M175 MILLTURN
Have one to sell?
ConditionNew
New

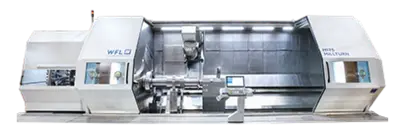

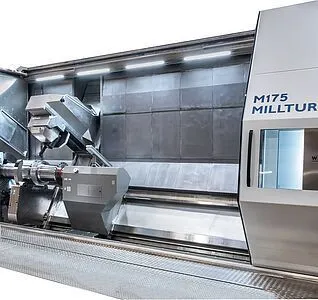

Bigger, stronger, faster - with the latest M-series product - the M175 MILLTURN - WFL is launching a new giant of complete machining. This contains significant innovations, ensures the highest precision and an advantageous versatility for customer requirements. The new turning-boring-milling unit offers a max. swing diameter of 1750mm and can accommodate up to 15.000kg heavy workpieces very stable due to the new, large-sized bed guideway for steady rest and tailstock.
The turning-boring-milling unit has an X-axis travel of 162mm and a Y-axis travel of 1100mm and can therefore be used uncompromisingly and universally, e.g. for deep radial machining.
Due to the large volume box structure of the turning-boring-milling unit cross slide with a very wide bed guide base and multiple arrangement of ground gliding guideways in the X- and Z-axis, the tool carrier system has a particularly high stability.
This massive and powerful construction is combined with proven main and milling spindle systems, whose 113kW and 58kW drives are extremely reliable in their performance.
Nominal center distance mm 2000/3000/5000/6500/8000/10000/12000
Swing - ø over Top slide mm 1750
Swing - ø over bed mm 1840/1810/1790/1750/1730/1700/1660
Max. power, Turning spindle 40% duty cycle kW 103//113
Max. torque, Turning spindle 40% duty cycle Nm 10160//14000
Max. torque, Turning spindle 100% duty cycle Nm 7300//12400
Max. spindle speed, Turning spindle min-1 800//800
Max. power, Miling spindle 100% duty cycle kW 74//100
Max. torque, Milling spindle 100% duty cycle Nm 500/310
Max. spindle speed, Milling spindle min-1 5000/8000
Swiveling angle B - axis degree - 110/+110
Travel Y - axis, 45kW mm 1100 (-550...+550)
Travel X - axis, 45kW mm 1620 (-20...+1600)
Tailstock, quill - ø mm 300
Tool magazine number 36/72/108/200
Control SIEMENS Type SINUMERIK 840D sl
