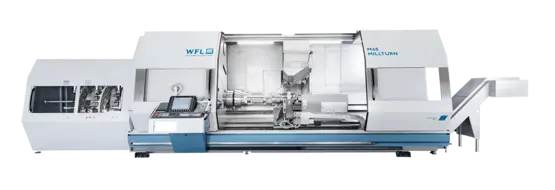

Anyone who wishes to stay ahead in the market must react quickly and in a flexible manner to their customers’ requirements. The components that customers require are becoming increasingly complex and therefore more demanding to manufacture. By combining all of the manufacturing steps in a multifunctional MILLTURN turning-boring-milling centre, the requirements of both current and future manufacturing jobs can be fulfilled with the highest level of precision. The possibility of freely interpolating the NC axes B, C, X, Y and Z offers the user an incomparable range of technologies. Complete machining without manual intervention, by means of turning, drilling, milling, deep hole drilling, internal and external gear cutting, turn-milling, circular milling and automatic workpiece measurement to enable compliance with the tightest of tolerances. Compensation of thermal influences is also provided for. Any geometric profile can be efficiently machined with the maximum level of precision. There are absolutely no limits when it comes to workpiece complexity.
Nominal center distancea mm 1000/2000/3000/4500
Swing - ø over Top slide mm 830
Max. Turning- ø between centers mm 830(760)
Max. power, Turning spindle 100% duty cycle kW 40/60
Max. torque, Turning spindle 100% duty cycle Nm 2318/2748
Max. spindle speed, Turning spindle min-1 2600/2600
Max. power, Miling spindle 100% duty cycle kW 30
Max. torque, Milling spindle 100% duty cycle Nm 315
Max. spindle speed, Milling spindle min-1 6000
Swiveling angle B - axis degree -110...+90
Travel Y - axis mm 600(-200...+400)
Travel Y - axis (option) mm -
Travel X - axis mm 720(-20...+700)
Tailstock type Mechatronic
Tool magazine number 40/80/120
Control SIEMENS type SINUMERIK 840D sl
