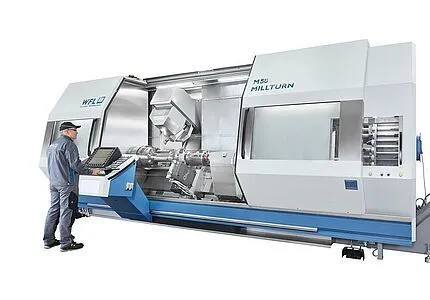

M50-G MILLTURN
Have one to sell?
ConditionNew
New
With the M50 and M50-G MILLTURN series, WFL Millturn Technologies is presenting a new generation of multifunctional turning-boring-milling centres for one-clamping machining of complex workpieces. up to 670 mm swing over bed.
Turning, milling, drilling, hobbing, shaping, gun drilling as well as ID contour machining can be performed under any angle of the tool. The interpolation of up to 5 axes makes machining of any geometrical profile possible.
The WFL Millturn Technologies M50-G is available is bed lengths of 1000, 2000, 3000, 4500, 6000 MM. Standard Chuck diameters range from 325/400/500mm OD (12.75" / 15.74" / 19.7") on both the Main and the Counter Spindle.
Nominal center distance mm 1000/2000/3000/4500/6000
Swing - ø over Top slide mm 670
Max. Turning- ø between centers mm 670
Max. power, Turning spindle 40% (100%) duty cycle kW 54(37)/55(45)//56(40)/80(60)///55(45)
Max. torque, Turning spindle 40% (100%) duty cycle Nm 2000(1400)/1830(1500)//3200(2320)/3600(2740)///1830(1500)
Max. spindle speed, Turning spindle min-1 3300/2500//2600/2600///2500
Max. power, Miling spindle 40% (100%) duty cycle kW 33(27)//40(35)
Max. torque, Milling spindle 40% (100%) duty cycle Nm 284(233)/213(175)//480(420)/300(263)
Max. spindle speed, Milling spindle min-1 9000/12000/*//5000/8000
Swiveling angle B - axis degree -110...+110
Travel Y - axis mm 400(-175...+225)
Travel X - axis mm 800(-20...+780)
Tailstock Type -
Tool magazine number 50/100/150/200//36/72/108/144
Control SIEMENS Type SINUMERIK 840D sl
Wide distances between guideways for the stable accommodation of big steady rests
Pick-up magazine for long tools with standard tool interface
B-axis turning
4-axis turning
Workpiece transfer
High-precision measuring with integrated measuring probe
