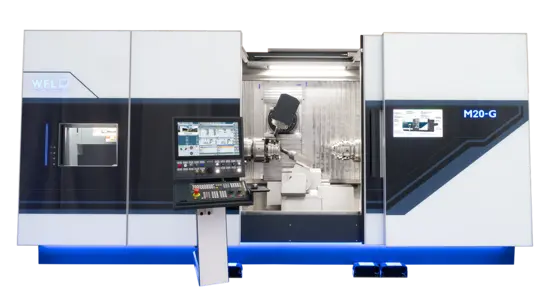

M20-G MILLTURN Smart Machining
Have one to sell?
ConditionNew
New
The M20 MILLTURN is the latest addition to the MILLTURN range and the ideal solution for users who are looking for a powerful complete machining centre. Special features include the high stability of the machine as well as a holistic motor spindle concept, which encompasses practically every machining technology.
Decades of expertise in complete machining have gone into the development of a completely new machine. Both the design and the technology are highly advanced.
The range of applications covered by the M20 is almost infinite. The machine is capable of carrying out demanding and complex machining tasks found in the aviation, automotive, engineering and plastics industries. Thanks to its extreme flexibility, the machine is also ideal for contract manufacturers.
Centre distance mm 1000
Swing diameter of top compound slide mm 500
Max. turning diameter between centres mm 500
Max. power, main spindle 40% at (100%) duty cycle kW 44(32)
Max. torque, main spindle 40% at (100%) duty cycle Nm 838(610)
Max. speed, main spindle rpm 4000
Max. power, milling spindle at 40% (100%) duty cycle kW 25(20)
Max. torque, milling spindle at 40% (100%) duty cycle Nm 110(85)
Max. speed, milling spindle rpm 20000
B-axis tilt angle Degrees +/-120
Y-axis travel mm 260(+/-130)
X-axis travel mm 575(-100...+475)
Tailstock Type MK5
Tool magazine Number 80
SIEMENS control Type SINUMERIK 840D sl
