JOHNFORD FBMC SERIES – FLOOR-TYPE HORIZONTAL BORING MILLS
Have one to sell?
ConditionNew
New

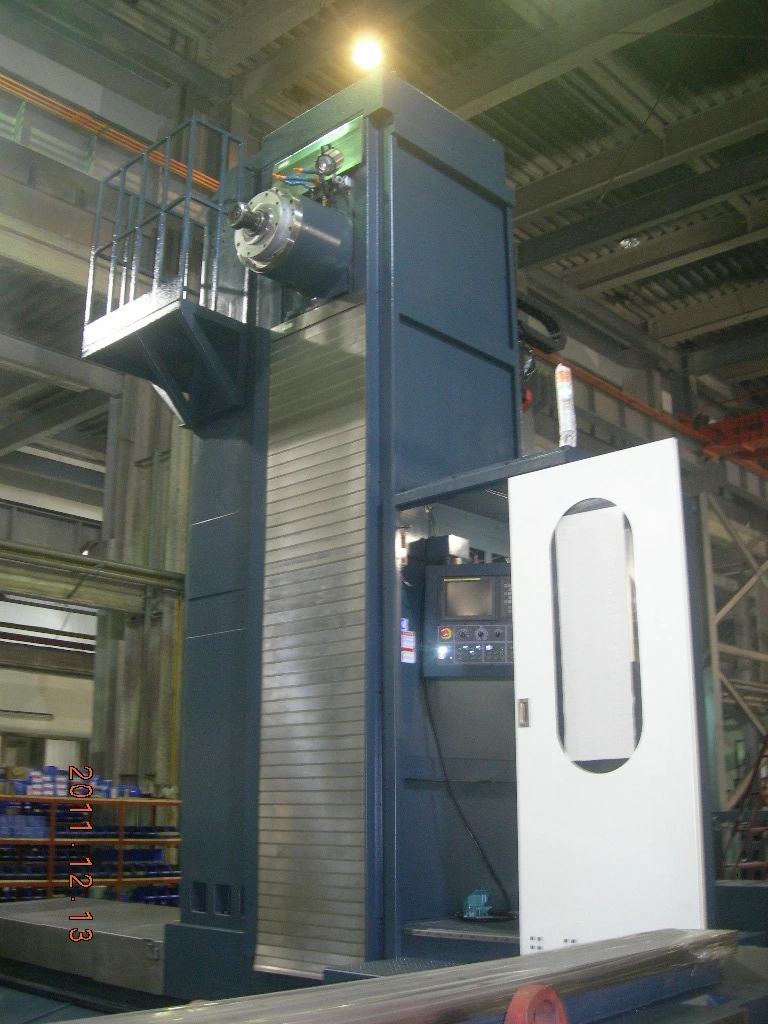

Johnford FBMC-160 floor-type horizontal boring mills are engineered for precision machining of large parts. The massive machines can be custom-configured to exactly meet specific production needs. Standard axis travels for X, Y, Z, W and V axes are 236″ x 137.8″ x 47.24″ x 39.37″ x 78.74″ (6,000 mm x 3,500 mm x 1,200 mm x 1,000 mm x 2,000 mm). Y axis travel can extend to 196.8″ (5,000 mm) and X axis travel can reach to 591″ (15,011 mm) and beyond.
The machines feature a moving column X axis and both a fixed and a rotary table for the V axis, a heavy duty design that results in maximum rigidity and accuracy. The X axis base is a one piece Meehanite cast iron construction. Roller ways in X, Y, Z, and V have precision Schneeberger 65mm bearings. A pressurized automatic oil system force lubricates the ways. A dual rack and pinion drive moves the X axis and provides high speed rapid traverse of 630″/min (16 m/min) with near zero backlash. Large diameter pre-tensioned ballscrews and servo motors position the other axes. The Y and V axes feature 3.15″ (80 mm)-dia. ballscrews while Z and W feature 2.5” (63.5 mm)-dia ballscrews.
Heidenhain scales are standard in all linear axes. The headstock features a 20.5″ (520 mm) x 17.7″ (450 mm) rectangular ram for the Z axis and a 6.3″ (160mm) bar for the W axis.
The 100 hp, 2,200 rpm main spindle motor has a 3 speed gear drive, and the spindle and headstock are oil cooled to minimize thermal growth.
Standard features include a stand-alone heavy-duty 60 tool arm type automatic tool changer, a comprehensive chip removal system, a high volume coolant system, a full B-axis rotary table with built-in rotary scale, and 300 psi coolant through the spindle.
The standard Fanuc 31iM-B control is suited for all types of general machining applications and provides options for high speed, high accuracy mold and die machining.
X Travel (in.) 236 – (up to 591 and beyond)
Y Travel (in.) 137.80 – 196.85
Z Travel (in.) 47.24
W Travel (in.) 39.37
V Travel (in.) 78.74
Ram Cross Section (in.) 17.72 x 20.47
Spindle Bar (in.) 6.3
Table Size Length (in.) 275.59 – 393.70
Table Size Width (in.) 98.43
Table Loading Capacity (lbs/sq. ft.) 1024
Max. Workpiece Load Flat Table (lbs.) 2,200 lbs./sq.ft
Spindle (hp.) 100
Spindle Speed (RPM) 10 – 2,200
Spindle Nose Taper CAT-50
Spindle Drive Motor (HP) 80/100
Spindle Drive Motor (S1/S6 – 60%) (kW) 60 /75
Spindle Drive 3 Speed Gearbox
X/Y/Z/W/V Axis Rapid Traverse (in./min.) X=630.4 / Y,Z,V=472.8 / W=236.4
X/Y/Z/W/V Axis Cutting Feed Rate (in./min.) 1 – 236.22
X/Y/Z/W/V Axis Servo Motor (HP) X=12 / Y=8 / Z,W,V=9
ATC Capacity 60 (80/120 opt.)
ATC Max Tool Diameter (in.) ∅9.84
ATC Max Tool Length (in.) 15.75
ATC Max Tool Mass (lbs.) 55
ATC Max Tool Diameter of Full Setting (in.) ∅4.92
ATC Tool Selection Bi-Direction Random Type, Shortest Path
Pneumatic Pressure 85 PSI
Rotary Table Size (in.) 98.43 x 118.11
Rotary Table Capacity (lbs.) 55,000 (100,000 opt.)
Machine Length (in.) 799.21 – 917.32
Machine Width (in.) 564.96
Machine Height (in.) 230.31 – 289.37
CNC Control Type FANUC 31iMB
Weight (lbs.) 240,000 – 349,800 (est. weights increase
with X Travel sizes)
Standard Accessories
Flood Coolant System with programmable air blast
Air blast for spindle
Auto Lubrication with Alarm
Automated chip removal system with chip conveyors
Halogen work lamp
3 speed geared head with spindle / headstock cooler
Remote Handwheel
Heat exchangers for control cabinets
Hydraulic counterbalance for headstock
Rigid Tapping
Floor Plate
Elevating operator’s platform / cabin
B axis rotary table (.001 degree)
60 Tool ATC
300 PSI Coolant through spindle
Heidenhain linear scales
B axis rotary scale
Optional Accessories
BT-50 tool changer
118” x 98” B axis Hydrostatic table with V axis 78.7″
X axis travel 354″
X axis travel 394″
X axis travel 433″
X axis travel 472″
X axis travel 551″
Unist Uni-Max cool lubricator for near dry machining
Blum Micro A-2 or A-3 laser tool setter (hardware only kit)
Blum A-2 or A-3 laser tool setter installed with 2 days training
Blum TC-50 part probe for 3-D surfaces (hardware only kit)
Blum TC-50 part probe installed with 2 days of training
Auto Tool Presetter (Renishaw OTS Wireless)
Renishaw NC4+ F145/85 3.35” laser tool setter (hardware only kit)
Renishaw NC4+ F145/85 3.35” laser tool setter installed with 2 days of training
Renishaw OMP-60 part probe for 2-D surfaces (hardware only kit)
Renishaw OMP-60 part probe installed with 2 days training
Renishaw MP-700 part probe for 3-D surfaces (hardware only kit)
Renishaw MP-700 part probe installed with 2 days training
Fanuc AC Drive for 7th Axis and 7th Axis interface (Rotary table on top of table)
High pressure coolant thru spindle 1000 PSI (includes twin tower bag filters)
440 / 460 / 480 Volt operation
Spindle extension sleeve (100mm)
Spindle extension sleeve (200mm)
Spindle extension sleeve (300mm)
Spindle extension sleeve (400mm)
Spindle extension sleeve (500mm)
Spindle extension sleeve (600mm)
Facing head (manual) 500mm diameter, 820mm max cut diameter
Facing head (manual) 630mm diameter, 1030mm max cut diameter
Facing head (manual) 800mm diameter, 1360mm max cut diameter
Facing head (manual) 1000mm diameter 1700mm max cut diameter
80 Tool ATC
120 tool ATC
Control options
Right angle head (manual) 50 taper input / 50 taper output
Multi-angle head (manual) 50 taper input / 5o taper output
Optional Control Features – Fanuc 31iM-B
Data Server with 1GB built-in ATA card and Ethernet connection
High speed machining function (600 block look ahead)
Look ahead extend (1000 block look ahead – high speed machining function required)
