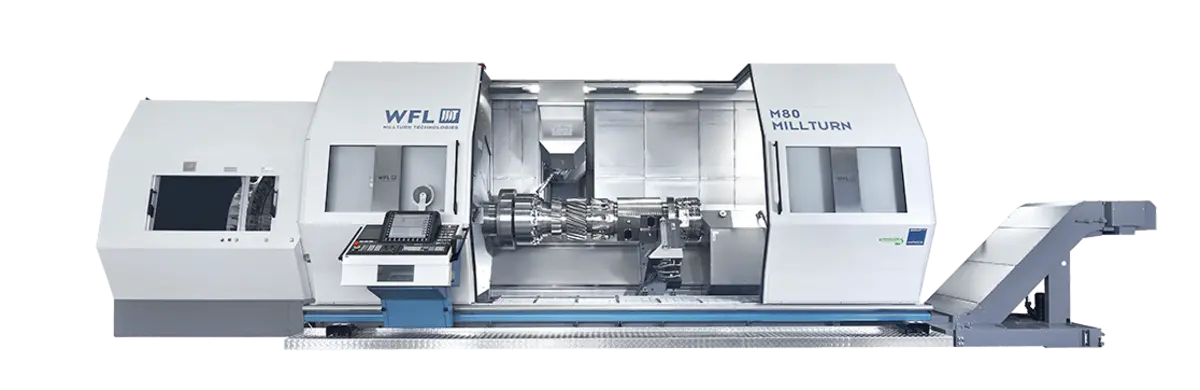

New WFL MillTurn Technologies M80-G MILLTURN | 5-Axis or More CNC Lathes

Description

The all-rounder

An essential feature of the M80 MILLTURN is the enormous variety of configurations possible out of the modular machine concept together with the best size for the individual machine configurations. The machine concept is based on minimized distances of tool and workpiece to the bed and widest possible guideway distances resulting in an optimum situation for rigidity and ideal geometries.

All center distances (except 1000 mm) are also available in a counter spindle version and for a further productivity enhancement an additional tool turret can be offered. Due to the innovative machine design the bottom guideways do not require any telescopic covers. Just straight stainless steel sheet metal makes perfect chip flow.

The new tool magazine is accessible from the front of the machine and is a compact, stable and truly maintenance-free unit. A highly dynamic tool changer with rack and pinion drive is equipped with linear axes thus avoiding any centrifugal forces caused by rotation so even tools with 35 kg in weight are handled safely and quickly.

Highlights at a glance
- 150 bar coolant pressure
- Tool change in any Z-axis position
- Heavy drilling and boring
- Gear hobbing
- Workpiece transfer
- Active B-axis
