New JOHNFORD SL-300 | CNC Lathes and Turning Centers

Description

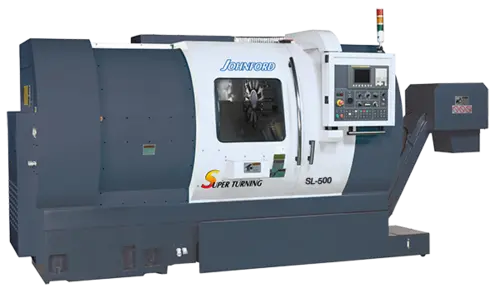

Johnford SL heavy-duty horizontal turning centers feature a 45˚ slant bed torque-tube design. The torque tube, or hole cast through the center of the slant bed, provides rigidity and dissipates heat. For optimum strength and accuracy, the machines are cast from rigid Meehanite iron.

Swing over the bed for the 11-machine series ranges from 15.7″ (5×9 mm) to 27.5″ (7×9 mm). Swings over the cross slide are 13″ (330 mm) and 21.5″ (546 mm). Distance between centers begins at 66″ (1,676 mm) and is 100″ (2,540 mm) on the largest machine. Bar capacity extends 1.7″ (43.2 mm) to 4.5″ (114 mm), depending on the machine.
